VACUUM AIR CIRCUIT

Description 1048A

2.0 JTS

OPERATION

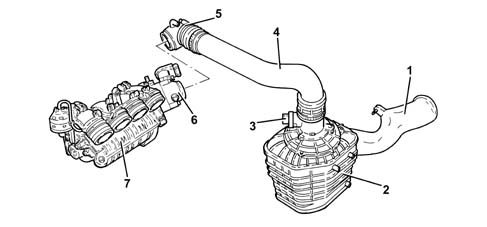

VIEW OF ASSEMBLY

1 - Cold air intake

2 - Air cleaner assembly

3 - Air flow meter

4 - Rigid pipe

5 - Corrugated hose

6 - Throttle body with D.V.L.

7 - Modular intake manifold

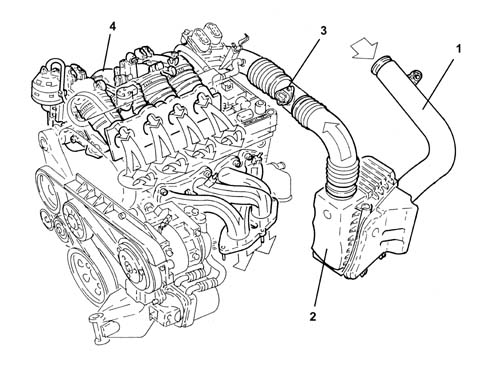

1.8 T.SPARK

AIR SUPPLY SYSTEM

1 - Cold air intake

2 - Air cleaner assembly

3 - Air flow meter [1056B]

4 - Modular intake manifold [1072D].

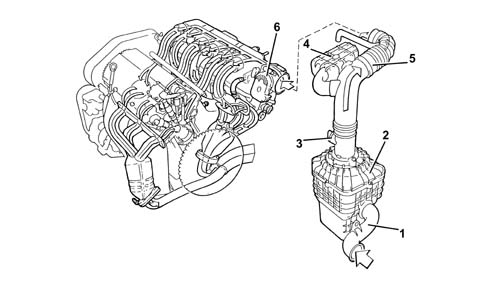

3.2 V6

OPERATION

Assembly view

1 - Cold air intake for air filter

2 - Air cleaner assembly

3 - Air flow meter

4 - Resonator

5 - Corrugated hose

6 - Throttle body with D.V.L.
