TAILGATE INTERIOR PANEL - R+R

Operation 7015A04 · TAILGATE ASSEMBLY

Removing

Open the tailgate.

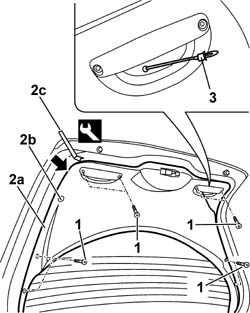

1. Unscrew the panel retaining bolts.

2. Remove the panel (2a) after having released it from the inner retainers (2b) using the special tool (2c).

3. Extract the cable duct rubber mounting and release the tailgate opening safety cable.

Refitting

Check that the panel is undamaged and that the retainers are undamaged and correctly positioned.

Pass the tailgate opening safety cable through the opening by the right handle and position the cable duct rubber mounting.

Fit the panel.

Fit the panel, engaging the retainers.

Tighten the panel fixing bolts.
