Body fittingsRear seat cushion - r+r
REAR SEAT CUSHION - R+R
Removing
Move the front seat fully forward.

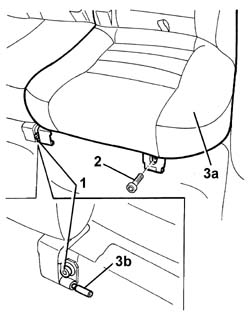

1. Loosen the bolt fixing the centre hinges.
2. Undo the bolt fixing the side hinges.
3. Remove the cushion (3a), releasing it from the pin (3b).
Refitting
Check that the rear seat cushion is intact and shows no signs of damage.
Place the cushion in its seating, engaging it on the pin of the central hinge.
Tighten the hinge retaining bolts
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | REAR SEAT CUSHION | M8 | 25 |
Reposition the front seat.
