EXHAUST MANIFOLD LOWER BULKHEAD R R

Operation 1072C42 · EXHAUST MANIFOLDS

2.2 JTS

Removing

- Position the vehicle on a lift.

- Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-).

Op. 1072C43 EXHAUST MANIFOLD UPPER BULKHEAD R R

1. Disconnect the electrical connection for the left upper Lambda sensor.

- Release the electrical wiring for the Lambda sensors from the fastenings on the exhaust manifold lower heat shield.

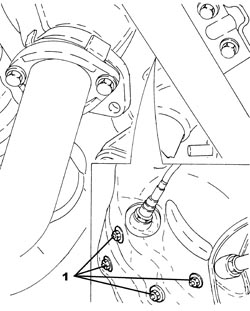

1. Working from underneath the vehicle, undo the nuts fixing the exhaust manifold lower heat shield.

1. Working from the engine compartment, remove the exhaust manifold lower heat shield.

Refitting

- Place the exhaust manifold lower heat shield in its housing.

- Tighten the nuts fixing the exhaust manifold lower heat shield.

- Connect the electrical connection for the left upper Lambda sensor.

Op. 1072C43 EXHAUST MANIFOLD UPPER BULKHEAD R R

- Connect the negative battery terminal.

- Remove the vehicle from the lift.
