Alfa Romeo Brera and Spider Factory Service Manual (2005-2010)08 · Engine
08 · Engine

Introduction - cylinder head(s)

Make
Alfa Romeo
Model
Brera and Spider Factory Service Manual
Year
2005–2010
Section
Cylinder head/s › Introduction - cylinder head(s)
EngineIntroduction - cylinder head(s)

INTRODUCTION - CYLINDER HEAD(S)

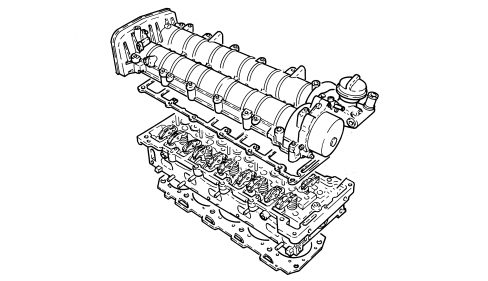

2.4 JTD 20v

The cylinder head is a one-piece cylinder head in aluminium alloy and silicone.

Two, ductile cast iron, overhead camshafts in a camshaft housing; they are operated by a belt and gears.

The four valves per cylinder, parallel and vertical, are positioned in the valve guides and are controlled by rocker arms operated by the camshaft cams and kept in contact with the valves through hydraulic tappets.

The valve guides are an interference fit in the cylinder head seats. A special reamer is used to produce the correct inner diameter after fitting.

Unlike cylinder heads with prechamber, the entire combustion process takes place in the combustion chamber on the piston.

The gasket between cylinder head and crankcase is metal and the head does not require retightening throughout the life of the engine.

INTRODUCTION - CYLINDER HEAD(S)

3.2 JTS

Technical specifications

The cylinder heads are the monolith type made from aluminium alloy and support and house the timing system components, the intake and exhaust manifolds, the housings for the spark plugs, the housings for the injectors and determine the shape of the combustion chamber.

The intake manifold and combustion chamber assembly is designed to improve the air/fuel mixing process, guaranteeing the correct turbulence of the intake air with the formation of a homogenous mixture for stable and completel combustion and the formation of few pollutants.

The four valves per cylinder are fitted in the guides, operated by two camshafts by means of finger roller rocker arms supported by hydraulic tappets. The hydraulic tappets for the inlet valves and the exhaust valves are different heights and cannot therefore be swapped.

Each spark plug is protected by a sleeve fitted on the cylinder head which also housess the ignition coil.

The engine coolant temperature sensor is located on the left cylinder head.

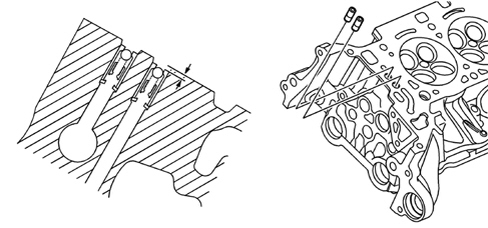

The non return valves are located on the cylinder head in the oil ducts for the phase transformer actuators. The valves should be recessed 2 mm in relation to the plane of the head.

INTRODUCTION - CYLINDER HEAD(S)

2.2 JTS

The cylinder head is one-piece in aluminium alloy and silicone.

The four valves per cylinder are fitted in guides arranged in a V and driven by two camshafts via hydraulic tappets.

The arrangement of the spaces allows the combustion chamber to house:

- the four valve heads

- the spark plug opening angled toward the exhaust duct

- the injector opening;

with the advantage of improving the thermal efficiency of the engine and reducing harmful exhaust emissions.

The valve guides are an interference fit in the cylinder head seats.

A special reamer is used to produce the correct inner diameter after fitting.

INTRODUCTION - CYLINDER HEAD(S)

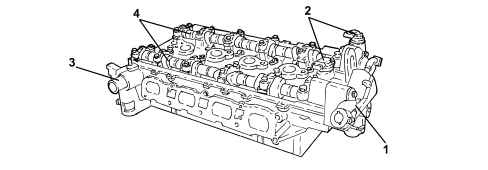

1. Fuel pressure pump

2. Timing sensors

3. Head coolant inlet connection

4. Camshafts
