AERIAL SUPPORT - R.R

Operation 5570T27 · CAR RADIO AND CAR TELEPHONE

Removing

- Remove the rear parcel shelf.

- For the left trim.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.

Or, alternatively.

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

Op. 7005A34 FRONT SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7040H10 ROOF PANEL LINING - R.R.

- Or, alternatively

Op. 7030L12 TRANSPARENT ROOF PANEL COVER - R.R.

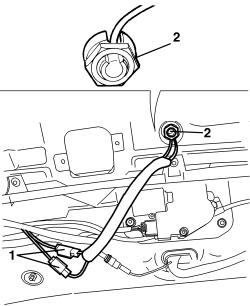

1. Disconnect the aerial lead connections.

2.Undo the special nut with the split washer.

1. Working from the roof of the vehicle, remove the aerial mounting and bridge.

Refitting

- Check that the aerial mounting is not damaged.

- Fit the bridge and position the aerial mounting, then secure it from the inside using the special nut.

- Connect the connections for the aerial lead.

Op. 7040H10 ROOF PANEL LINING - R.R.

- Or, alternatively

Op. 7030L12 TRANSPARENT ROOF PANEL COVER - R.R.

Op. 7005A34 FRONT SIDE DOOR COMPARTMENT SEAL - R.R

Op. 7065C68 INTERIOR REAR VIEW MIRROR - R+R

Op. 7065C60 INTERIOR REAR VIEW MIRROR FOR VERSIONS WITH RAIN/DUSK SENSOR - R.R.

Op. 7040E40 MODULAR FRONT COURTESY LIGHT - R R

Op. 7065C34 SUN BLIND (ONE), LEFT OR RIGHT - R.R.

Op. 7040H30 FRONT PILLAR TRIM (ONE), LEFT OR RIGHT - R.R.

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.
