O025 additional heater resistance
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Resistances and dimmers › O025 additional heater resistance
‹ Prev O012 engine fan 2 adjustment resistanceNext › O030 passenger compartment air fan adjustment resistor
Connectors and pin-outsO025 additional heater resistance

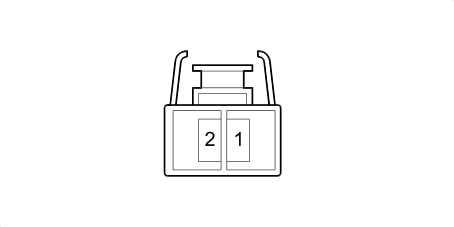

O025 ADDITIONAL HEATER RESISTANCE
O025A – Air conditioning
| Wiring | Colour |
|---|---|
| See 65 AIR CONDITIONING | GRIGIO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See C016 AIR CONDITIONING UNIT EARTH | ||
| 2 | 4 | S | See J036 ADDITIONAL HEATER RELAY - 1 | 30 | |
| Wiring | Colour |
|---|---|
| See 65 AIR CONDITIONING | GRIGIO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 4 | N | See C016 AIR CONDITIONING UNIT EARTH | ||
| 2 | 4 | R | See J036 ADDITIONAL HEATER RELAY - 1 | 30 | |
O025B – Air conditioning
| Wiring | Colour |
|---|---|
| See 65 AIR CONDITIONING | BLU |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 8 | N | See C016 AIR CONDITIONING UNIT EARTH | ||
| 2 | 8 | S | See J037 ADDITIONAL HEATER RELAY -2 | 30 | |
| Wiring | Colour |
|---|---|
| See 65 AIR CONDITIONING | BLU |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 8 | N | See C016 AIR CONDITIONING UNIT EARTH | ||
| 2 | 8 | R | See J037 ADDITIONAL HEATER RELAY -2 | 30 | |
