J035 passenger compartment air fan relay
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Relays › J035 passenger compartment air fan relay
Connectors and pin-outsJ035 passenger compartment air fan relay

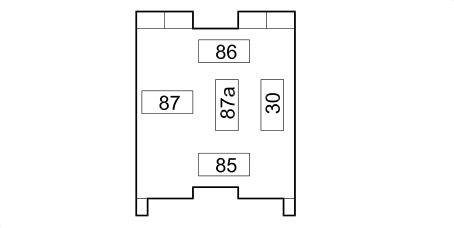

J035 PASSENGER COMPARTMENT AIR FAN RELAY
| Wiring | Colour |
|---|---|
| See 65 AIR CONDITIONING | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 30 | 4 | N | See C016 AIR CONDITIONING UNIT EARTH | ||
| 85 | NZ | See J036 ADDITIONAL HEATER RELAY - 1 | 86 | ||
| 85 | NZ | See C016 AIR CONDITIONING UNIT EARTH | |||
| 86 | RH | See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT | 10 | ||
| 87 | 4 | RN | See H081 CLIMATE CONTROL FAN CONTROL | 1 | |
