D013 front/bumper coupling

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D013 front/bumper coupling

Connectors and pin-outsD013 front/bumper coupling

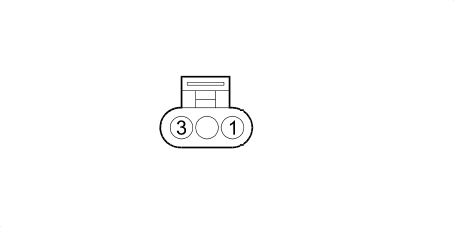

D013 FRONT/BUMPER COUPLING

D013A – Front

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N		See C010 LEFT FRONT EARTH	4
2	1	MN		See B001A JUNCTION UNIT (FRONT)	4
3	1	M		See B001A JUNCTION UNIT (FRONT)	5

D013A – Front bumper

Wiring	Colour
See 14 FRONT BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	N	X	See F015 LEFT FOG LAMP	2
				See F016 RIGHT FOG LAMP	2
2	1	MN		See F016 RIGHT FOG LAMP	1
3	1	M		See F015 LEFT FOG LAMP	1
