Connectors and pin-outsC050 air bag system earth

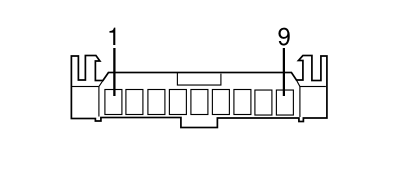

C050 AIR BAG SYSTEM EARTH

C050A – Dashboard

C050 AIR BAG SYSTEM EARTH
WiringColour
See 20 DASHBOARD
PinCableDestination
Sec.ColourNodeConnect.Pin
1NSee M060A AIR BAG CONTROL UNIT (DASHBOARD)1

C050B – Rear

C050 AIR BAG SYSTEM EARTH
WiringColour
See 25 REARNERO
PinCableDestination
Sec.ColourNodeConnect.Pin
1NZSee D071A PASSENGER SEAT COUPLING (REAR)4
3NZSee D071A PASSENGER SEAT COUPLING (REAR)5
4NZSee D070A DRIVER'S SEAT COUPLING (REAR)5
6NSee D071A PASSENGER SEAT COUPLING (REAR)12
8NZSee D070A DRIVER'S SEAT COUPLING (REAR)4
