HANDBRAKE LEVER - R+R

Operation 3380A10 · HANDBRAKE CONTROL AND LINKAGE

Removing

- Position the vehicle on a lift.

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

(left and right).

Op. 7040L71

Op. 5010C32

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L20 TUNNEL COVER - R.R

1. Disconnect the electrical connection from the handbrake switch.

2. Remove the handbrake switch.

1. Loosen the nut tensioning the handbrake cables.

2. Disconnect the cables from the handbrake lever.

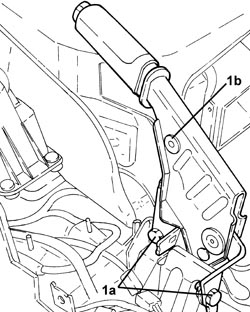

1. Undo the bolts (1a) and remove the handbrake lever (1b).

Refitting

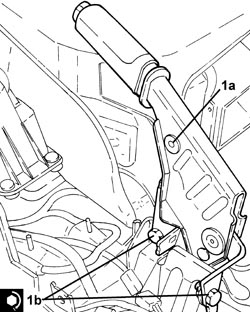

1. Place the handbrake lever (1a) in its housing and secure it by tightening the nuts (1b) to the recommended torque.

- Connect the cables to the handbrake lever.

- Refit the handbrake switch

- Connect the electrical connection to the handbrake switch.

Op. 7040L20 TUNNEL COVER - R.R

Op. 3380A44 HANDBRAKE/LINKAGE PROTECTION - R+R

Op. 7040L37 GEAR LEVER TRIM - R.R

Op. 5010C32

Op. 7040L71

Op. 7045A10 FRONT SEAT (ONE), LEFT OR RIGHT - R.R.

(left and right).

Op. 3380A04 HANDBRAKE - ADJUST TRAVEL

- Remove the vehicle from the lift.
