SPLIT REAR SEAT RIGHT BACKREST - R.R.

Operation 7050A15 · REAR SEAT ASSEMBLY

Removing

Op. 7050A22 REAR SEAT CUSHION - R+R

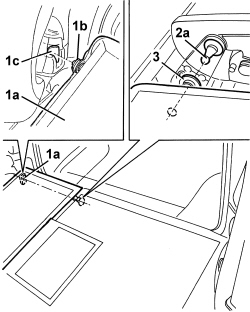

1. Operate the lever (1a) to release the right backrest (1b), then fold forward to the end of its travel.

1. Slightly raise the end (1a) of the backrest and disengage its side retainer (1b) from the housing (1c).

2. Release the backrest from the centre pin (2a) and keep it.

3. Keep the washer.

Refitting

- Check that the backrest is not damaged.

- Position the washer.

- Move the backrest keeping it in a horizontal position, then attach it to the centre pin.

- Insert the backrest side retainer in its seat.

- Lift up the backrest to the end of its travel and and attach it to the retainer.

- Check that the fold-down backrest is working properly.
