E1020 Ground (Euro3)
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Power supply and ground › E1020 Ground (Euro3)
Wiring diagramsE1020 Ground (Euro3)
E1020 Ground (Euro3)
Description
The following diagram shows the various earths on the vehicle, and the circuits connected to each are indicated.
It is thus easy to identify the circuits which are connected to earth from the same line; this facilitates fault finding if a problem involves more than one function: for example, the corrosion of one earth could put different circuits and several functions out of action at the same time.
Description of operation
The car earth points are subdivided according to the wiring to which they are connected, as follows:
- battery negative wiring C1 C10 C
- crossmember wiring C11
- front wiring C10 A C10 B
- engine wiring (petrol version) C40 A C40 B C40 C.
- dashboard wiring C20 A
- rear wiring C20B C30 C31.
- rearscreen negative wiring (saloon) C32
- right tailgate wiring(Sportwagon) C29.
- Air Bag wiring C50
- ABS wiring C1 B C12 C41.

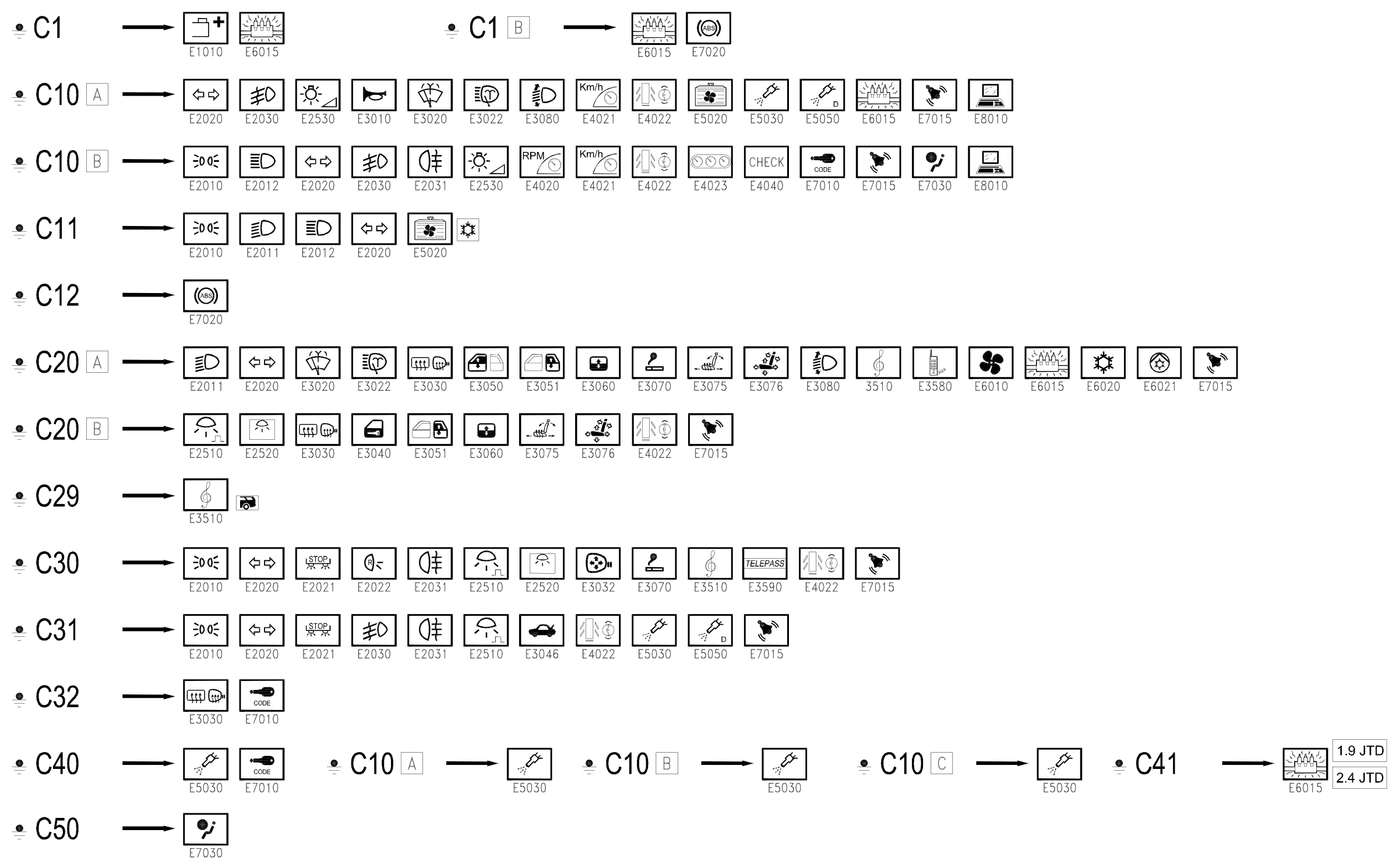

Wiring diagram
Components
| Code | Component | See |
|---|---|---|
| C01 | Battery earth | description 5530B |
| C10 | Front left earth | description 5505A |
| C11 | Right front earth | description 5505A |
| C12 | ABS front earth | description 5505A |
| C20 | Passenger side dashboard earth | description 5505A |
| C30 | Left rear earth | description 5505A |
| C31 | Rear right earth | description 5505A |
| C32 | Rearscreen earth | description 5505A |
| C40 | Earth on engine | description 5505A |
| C41 | Earth cable loom for additional heater | |
| C50 | Air Bag earth | description 5505A |

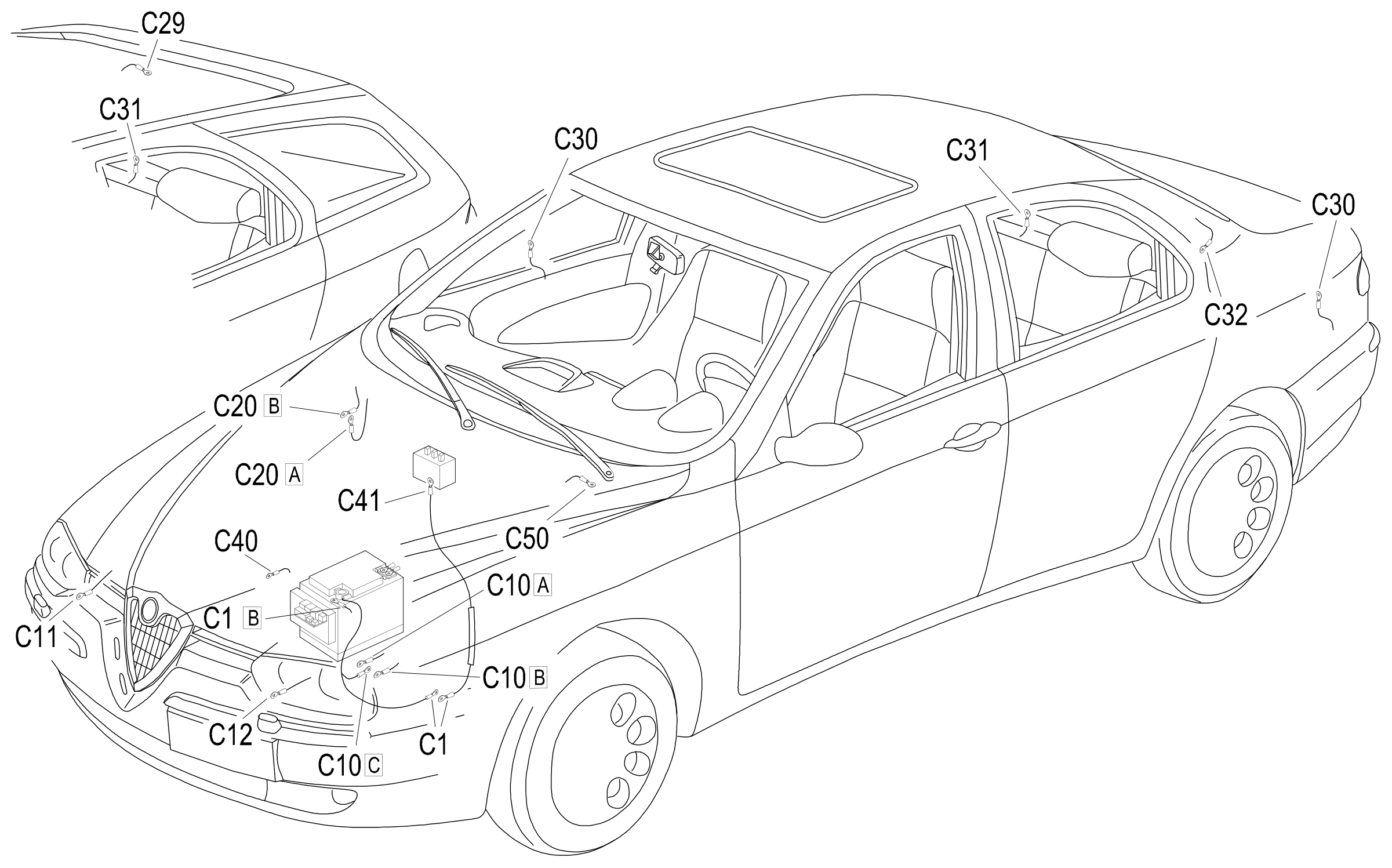

Component location
