E3046 Boot opening (S.W.)
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Electrical activation devices › E3046 Boot opening (S.W.)
Wiring diagramsE3046 Boot opening (S.W.)
E3046 Boot opening (S.W.)
Description
A special relay controls the operation of the tailgate lock release actuator, which is operated by a remote control unit in the key (via a special button).
The boot release circuit is protected by a dedicated shunt fuse.
Description of operation
When a special button on the key is operated, a boot opening signal is sent to remote control receiver M35, which sends an earth signal to boot opening relay J56 that in turn supplies boot lock motor N57 via a line protected by fuse B60.

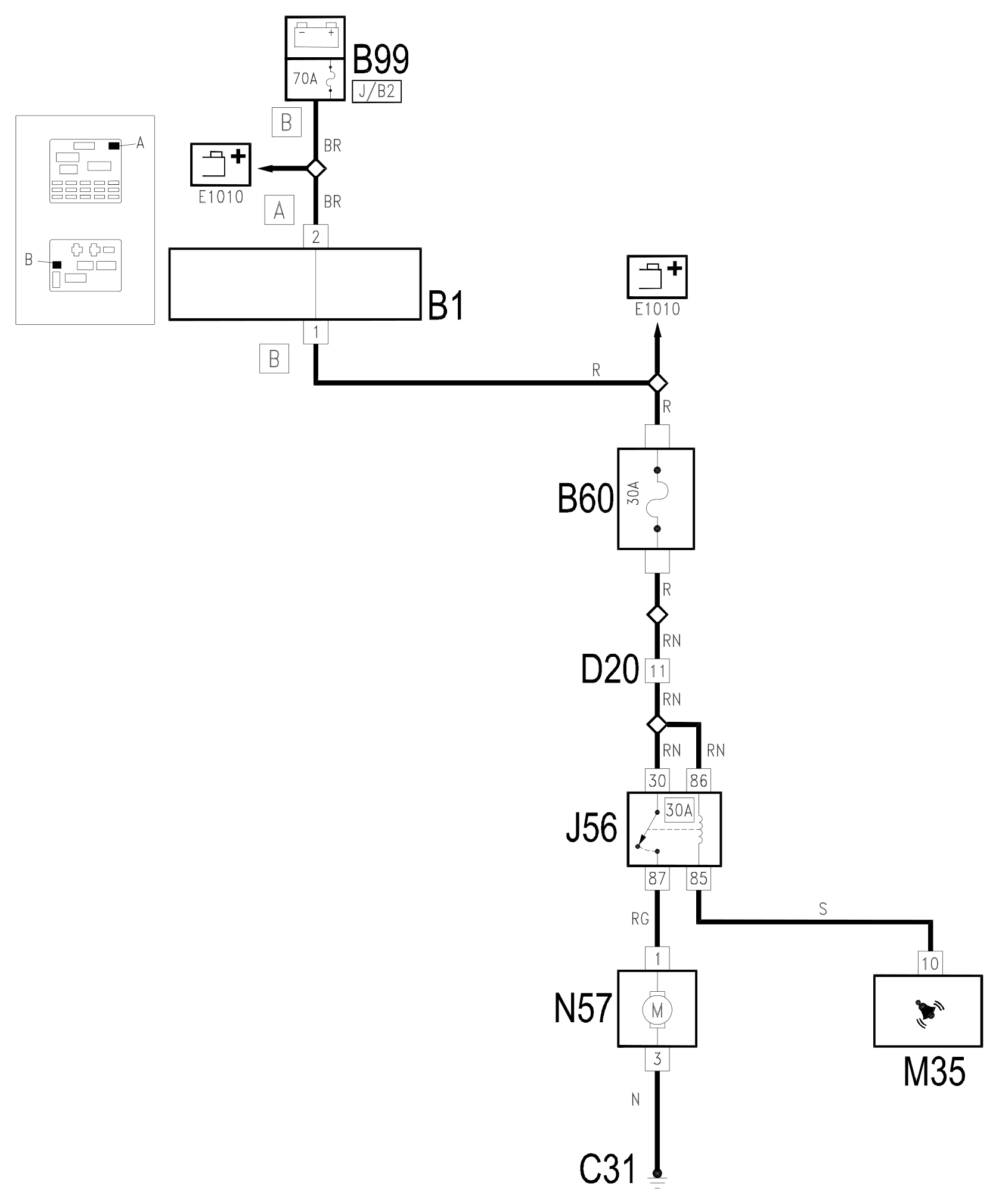

Wiring diagram
Components
| Code | Component | See |
|---|---|---|
| B01 | Junction unit | description 5505A |
| B60 | Boot opening fuse | |
| B98 | Supplementary fuse box | description 5505A |
| D20 | Dashboard/rear connection | |
| J56 | Boot opening relay | |
| M35 | Alarm remote control receiver | description 5580E |
| N57 | Boot lock gearmotor |

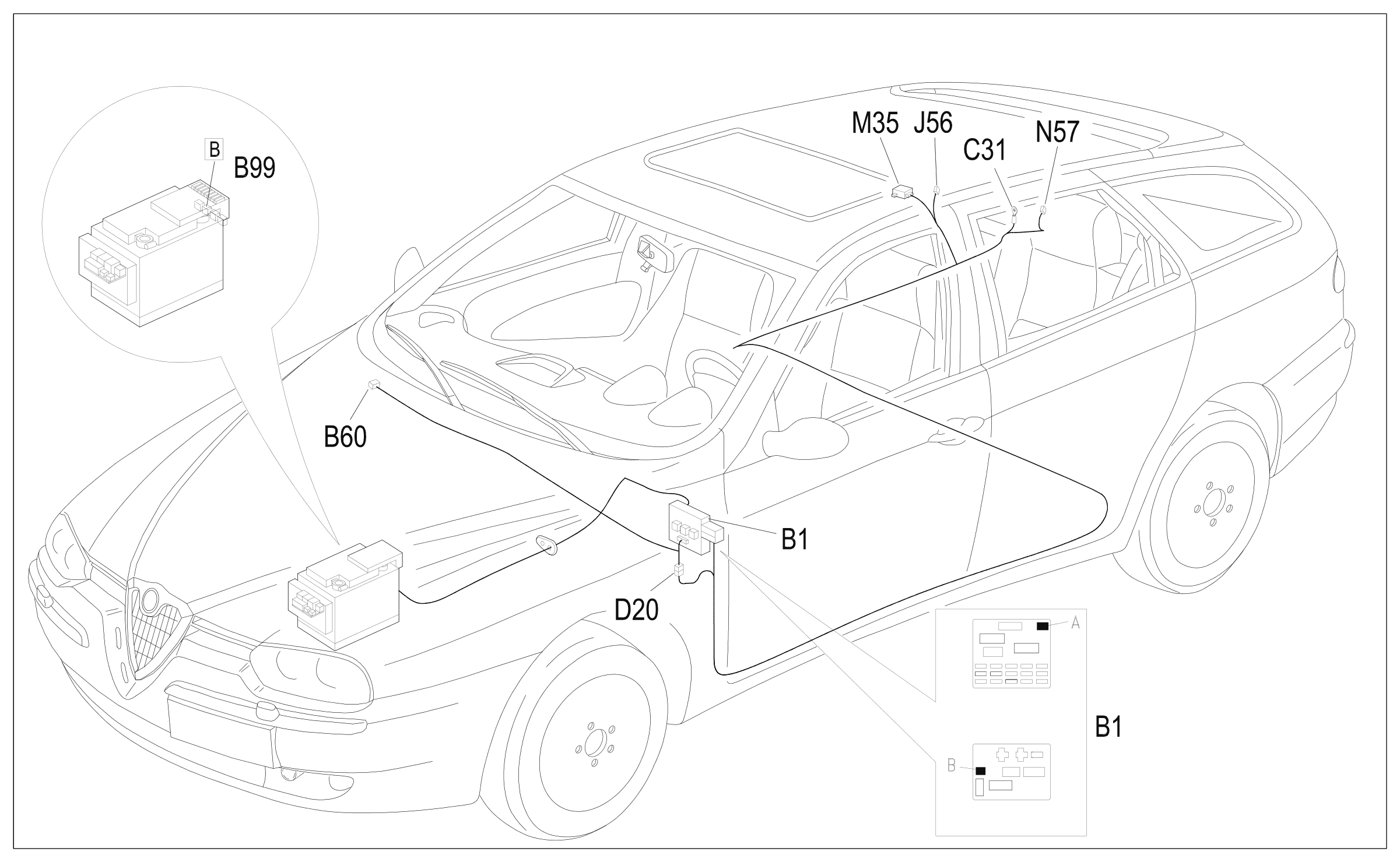

Component location
