P92 Subwoofer
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Users › P92 Subwoofer
Connectors and pin-outsP92 Subwoofer
P92 Subwoofer

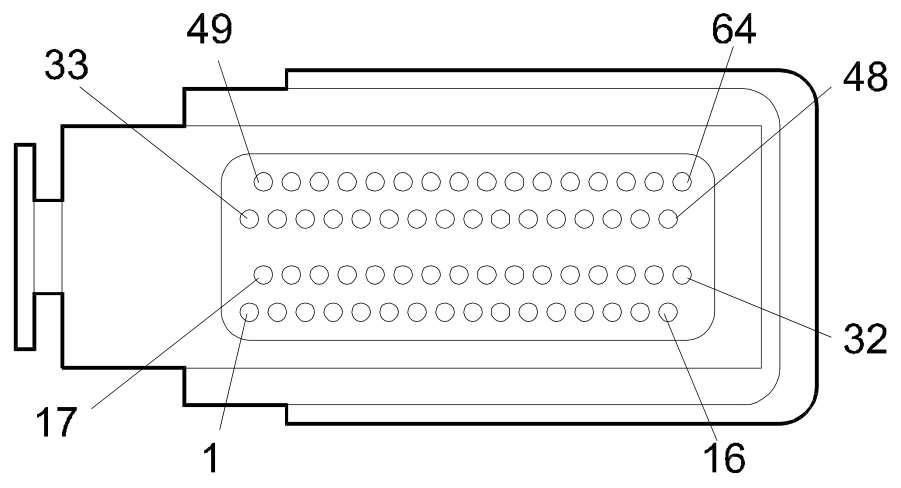

Connector P92 – rear harness (white)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.5 | BR | white/red | D20 pin 28 D35 pin 9 |
| 2 | 1.5 | AG | light blue/yellow | D20 pin 25 D36 pin 9 |
| 3 | 1.5 | C | orange | M40B pin 8 B01G pin 1 |
| 4 | 1.5 | AR | light blue/red | D20 pin 27 D35 pin 8 |
| 5 | 1.5 | AB | light blue/white | D20 pin 26 D36 pin 8 |
| 7 | 1.5 | N | black | C30 |
| 8 | 1 | RV | red/green | D20 pin 3 D88 pin 1 |
