Frame and cross beam – specifications:

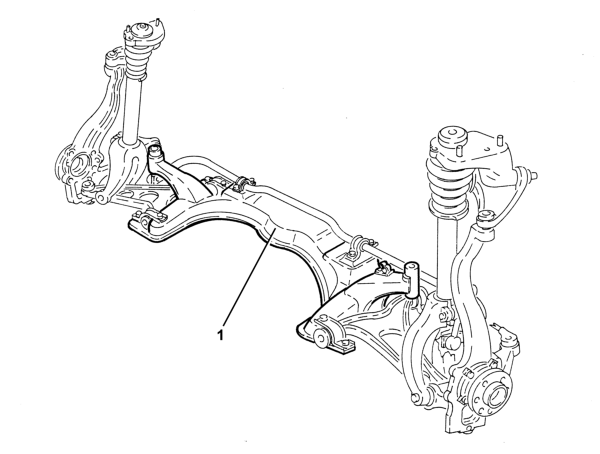

- 1 Suspension frame
VIEW OF ASSEMBLY
The suspension frame, made of steel plate, connects and supports the right and left suspension quadrilaterals. The torsion bar and power steering box are also attached to the frame. The configuration of the assembly, which allows the suspension
mountings to be separated from the body, apart from offering ease of assembly/dismantling, ensures that the original geometric characteristics are maintained.
