Third stop light - r+r

Operation 5550D16 · Brake and reversing lights

Removal

Open the tailgate.

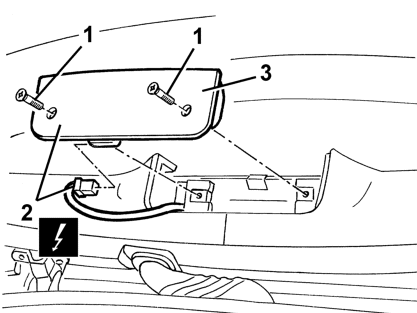

1 Unscrew the bolts

2 Move the trim with the third brake light slightly and disconnect the electrical connection.

Component F40 Additional ('third brake light') 2

3 Recover the third brake light.

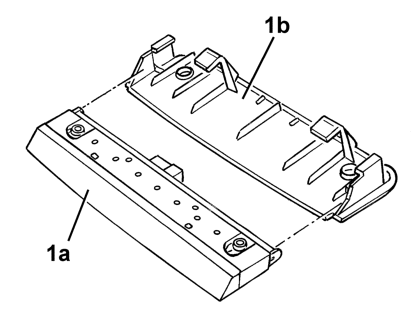

1 If necessary, release the third brake light 1a from the trim 1b.

Refitting

Check that the third brake light is not damaged.

If removed, engage the third brake light in its housing in the trim.

Connect the electrical connection

Fit the moulding with the third brake light and tighten the bolts.

Close the tailgate.

Check the operation of the third brake light.
