Electrical equipmentSide bag module

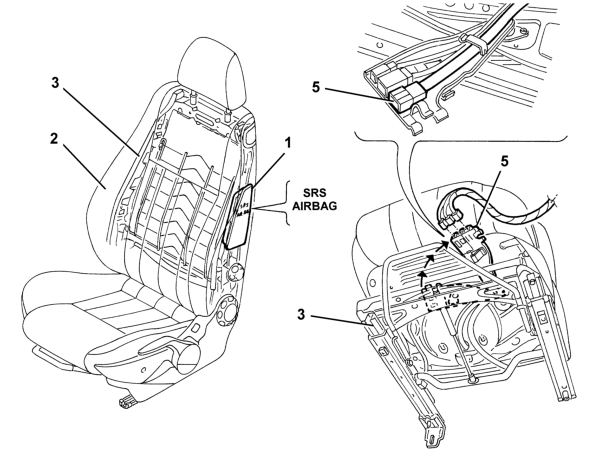

SIDE BAG MODULE
- 1 Side Air Bag module
- 2 Seat cover
- 3 Seat structure
- 4 Supply cable
- 5 Connector
The figure below shows a view of assembly.
