Electrical equipmentRev counter

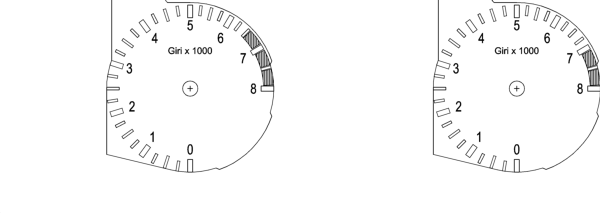

REV COUNTER
The rev counter shows figures of between 0 and 8000 rpm.
The panel receives information, via the B-CAN line, concerning the engine speed supplied by the NCM and displays it through a pointer moved by a P/P motor.
The panel processes the engine rpm data without corrections with a constant time of 200ms so that the response at zero RPM - end of scale RPM is less than 2 seconds
