OUTSIDE TEMPERATURE READING

The outside temperature is displayed on the:

• LOW version in the segment display 2
• HIGH version on the matrix display

The panel receives information, via the B-CAN network, concerning the temperature expressed in degrees centigrade from the NBC.

If the outside temperature is being shown on a segment display 2, if the temperature value received is higher, as an absolute value, thatn the figure shown by two digits (-99/+99) it displays ± 99°C with a sign consistent with the sign received.

The '+' sign is not displayed for positive temperatures.

If the temperature is equal to '0' then the '-' sign is not displayed.

Below are some examples.

HIGH LINE VERSION

Screen with TRIP Computer function activated - Automatic Transmission (Selespeed)

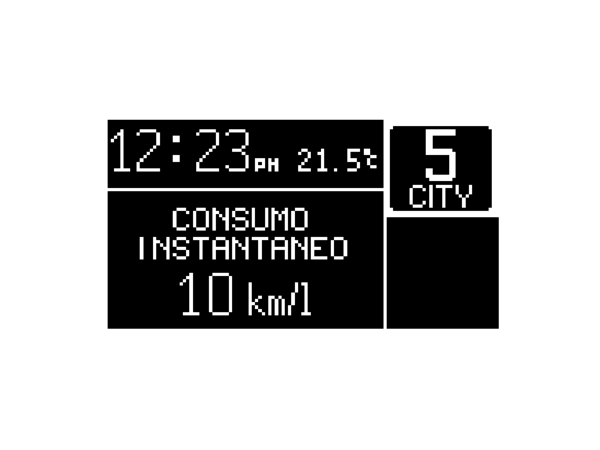

The first screen shows the reading in degrees centigrade

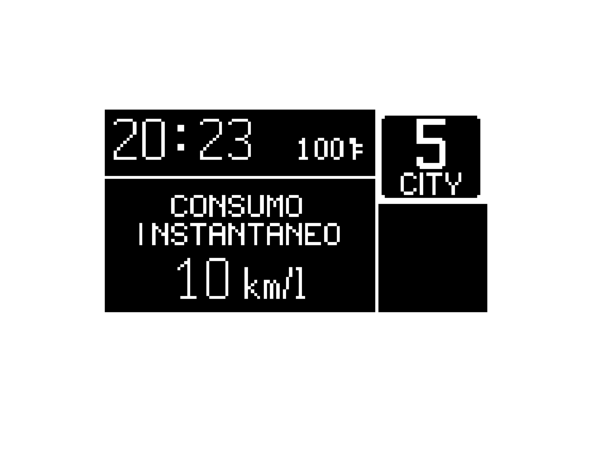

The second shows degrees Fahrenheit

LOW LINE VERSION

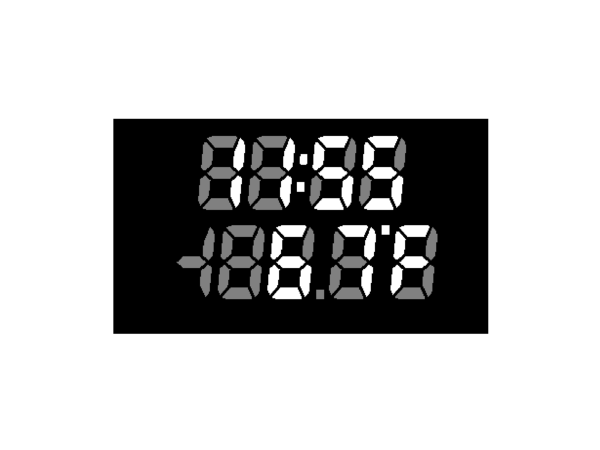

The first screen shows the reading in degrees centigrated

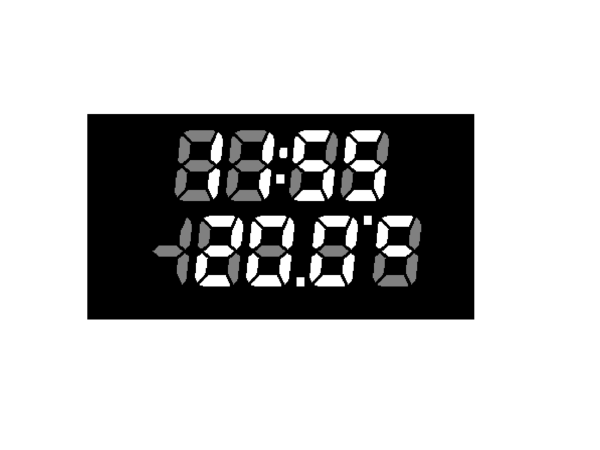

The second shows degrees Fahrenheit
