Electrical equipmentFacia control unit (cpl)

FACIA CONTROL UNIT (CPL)

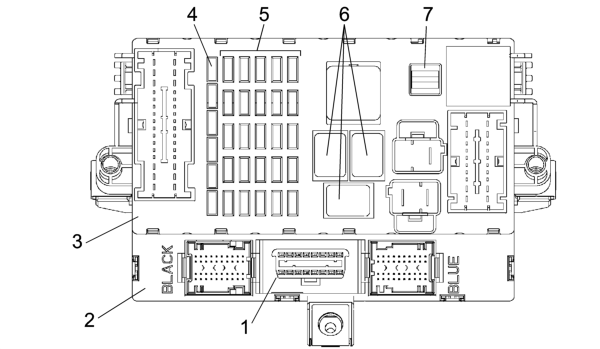

FACIA CONTROL UNIT (CPL)
  • 1 EOBD connector diagnostic socket
  • 2 Body computer (NBC)
  • 3 Facia control unit (CPL) fitted to NCB node (CPL+NBC=NPL: Facia node)
  • 4 Reserve fuses
  • 5 System protection fuses
  • 6 Relays
  • 7 Fuse removal clip

This is located on the Body Computer (NBC)

Electromechanical control unit (CPL) and body computer electronic node (NBC) fitted to the underfacia area to the left of the steering wheel are interconnected and form a single unit known as the facia node (NPL). The control unit is equipped with

fuses and relays

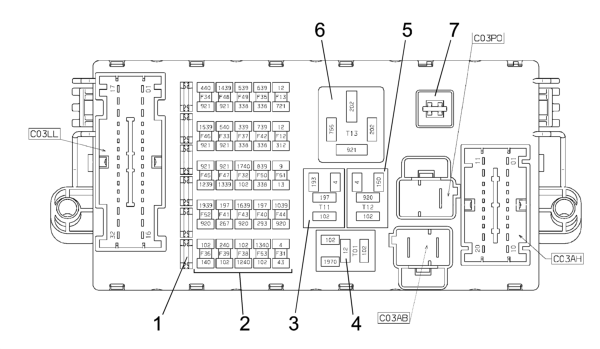

FACIA CONTROL UNIT (CPL)
  • 1 Reserve fuses
  • 2 Protection fuses
  • 3 Heated rear window relay (T11) Bitron/Italmec (micro)
  • 4 Dipped beam relay (T01) Bitron/Italmec/Siemens (micro)
  • 5 Key discharge relay 1 (T12) Bitron/Italmec/Siemens (micro)
  • 6 Key discharge relay 2 (T13) Italmec/Siemens (maxi)
  • 7 Clip
  • C03AB - 2 pin connector
  • C03PD - 1 pin connector
  • C03LL - 32 pin connector
  • C03AH - 20 pin connector

The following figure shows a front view of the control unit

Facia control unit CPL protects the electrical equipment by means of the following fuses:

CODCOMPONENTInTYPE
F-12FUSE RIGHT DIPPED BEAM10mini
F-13FUSE LEFT DIPPED BEAM /CAF10mini
F-31FUSE HEATER UNIT/NCL RELAY COIL INT/A7.5mini
F-32FUSE (+30) NCR15mini
F-33FUSE LH REAR ELECTRIC WINDOW20mini
F-34FUSE RH REAR ELECTRIC WINDOW20mini
F-35FUSE REVERSING LIGHT, CRUISE CONTROL, LIGHTING NCL7.5mini
F-36FUSE (+30) TRAILER CONTROL UNIT (PREDISPOSITION)10mini
F-37FUSE STOP, NQS10mini
F-38FUSE DOOR LOCK20mini
F-39FUSE +30 SERVICES (RADIO, SEN. VOLUME, DIAGNOSTIC SOCK. (EOBD), PRED. CAR PHONE, NCL, NPG, NVB, NIT15mini
F-40FUSE HEATED REAR WINDSCREEN30mini
F-41FUSE MIRRORS/HEATED NOZZLES7.5mini
F-42FUSE (INT) NFR, NAS, YAW SENSOR7.5mini
F-43FUSE TC / TWO-WAY PUMP30mini
F-44FUSE CIGARETTE LIGHTER20mini
F-45FUSE HEATED SEATS15mini
F-46FUSE SUNROOF15mini
F-47FUSE POWER SUPPLY NPG POWER (L.G.)20mini
F-48FUSE POWER SUPPLY NPG (L.P.)20mini
F-49FUSE (INT) CONTROL/SECONDARY SERVICE LIGHTING7.5mini
F-50FUSE (INT) AIR-BAG - CAB7.5mini
F-51FUSE (INT) NCR7.5mini
F-52FUSE REAR WIPER15mini
F-53FUSE +30 TURN SIGNAL/HAZARD WARNING, NQS10mini
