Hydraulic brake system - bleed

Operation 3330A14 · Hydraulic brake system tests and checks

Position the vehicle on the ramp.

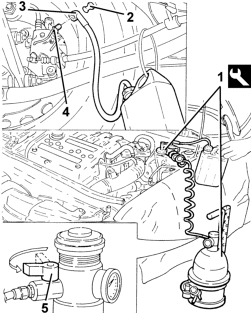

1 Connect the tool to the brake-clutch fluid reservoir.

Special tool 1.806.097.001 – Brake/clutch bleeding equipment 1

2 Remove the protective cap on the brake caliper bleed valve.

3 Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

4 Open the bleed valve on the brake caliper.

5 Slowly open the fluid reservoir tap.

Wait until all the air contained in the hydraulic system has emerged.

Close the bleed valve on the brake caliper and fit the protective cap.

Repeat the above operations for the other brake calipers.

Remove the collection system (pipe and reservoir).

Remove the equipment.

Special tool 1.806.097.001 – Brake/clutch bleeding equipment

Remove the car from the ramp.
