BodyRear seat arm rest - r+r
Rear seat arm rest - r+r
Removal

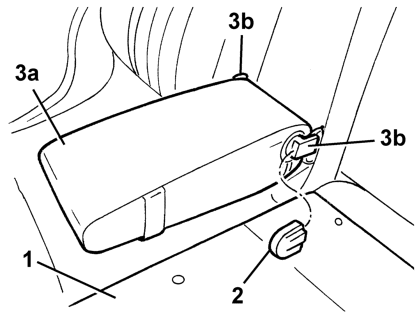

1 Lower the left-hand squab
2 Remove the armrest embellishment.
3 Remove the armrest 3a disengaging it from the retainers 3b.
Refitting
Check that the armrest is not damaged.
Position the armrest and engage the retainers.
Fit the panel and raise the squab.
