Rear ornament - r r

Operation 7055A80 · Exterior mouldings

Removal

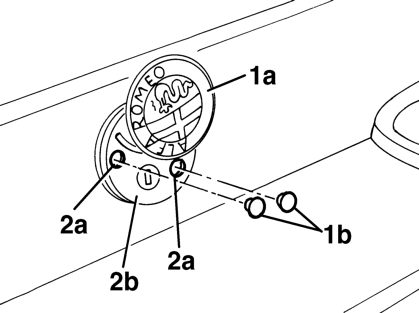

1 Turn crest 1a and prise out both plugs 1b protecting the retaining bolts.

2 Use a drift to unscrew both self-tapping screws 2a securing crest 2b and remove.

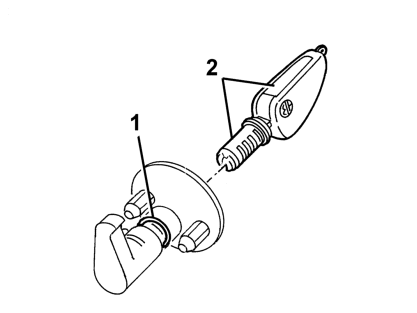

1 Disengage the lock barrel retaining clip.

2 Insert the key in the lock barrel and remove.

Refitting

Check that the lock barrel and the crest are not damaged.

Fit the retaining spring into its seat.

Fit the lock barrel into its seat until the groove engages with the retaining clips.

Fit the crest assembly and secure using two new self-tapping screws.

Fit the protective caps for the bolts.

Test the lock barrel to ensure it works properly.
