Radiator shield - r r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Mouldings on protections › Radiator shield - r r

BodyRadiator shield - r r

Radiator shield - r r

Operation 7055A40 · Exterior mouldings

Removal

See Op. 7055B54 Under-engine guard - r r

See Op. 7210E10 Front bumper

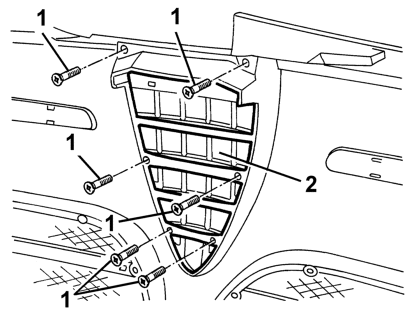

1 Unscrew the bolts

2 Remove the shield.

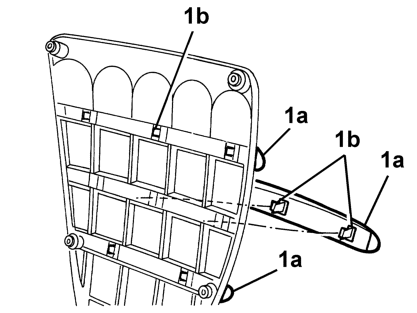

1 If necessary, take off panels 1a by undoing retainers 1b.

Refitting

Check that the shield is undamaged.

If the panels were removed, refit and do up the retainers.

Position the shield and secure it using the bolts.

See Op. 7210E10 Front bumper

See Op. 7055B54 Under-engine guard - r r

13 Body & interior
