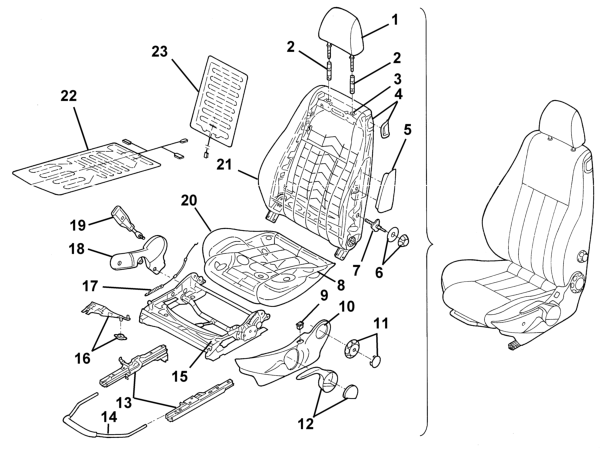

Front seats – composition

• 1 Head restraint
• 2 Head restraint bushes
• 3 Squab frame
• 4 Squab release device
• 5 Side bag
• 6 Lumbar adjustment knob
• 7 Lumbar adjustment device
• 8 Cushion base
• 9 Heat pad switch
• 10 Exterior guard
• 11 Squab adjustment knob
• 12 Seat height adjustment lever
• 13 Guide
• 14 Seat slide control lever
• 15 Seat lift unit
• 16 Connector carrier bracket
• 17 Slide position memory control cable
• 18 Inner guard
• 19 Seat belt anchorage link
• 20 Cushion trim
• 21 Squab trim
• 22 Cushion heat pad
• 23 Squab heat pad

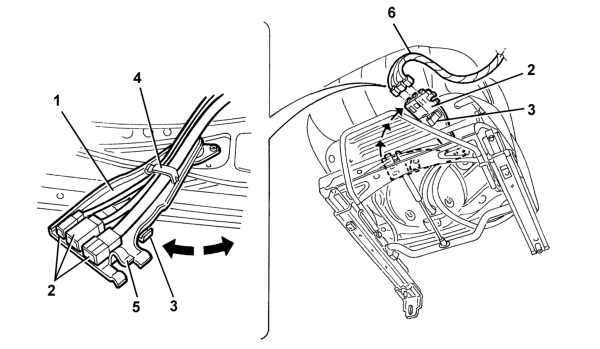

Structure of the front seat

• 1 Connector carrier bracket
• 2 Electrical connectors
• 3 Anchorage clip
• 4 Seat electrical lead retainer
• 5 Vehicle electrical lead retainer
• 6 Vehicle electrical cable

The air bag module, seat belt fastened sensor and heat pad (if present) connection leads are anchored to the seat structure by bands and covered by a protective coating.

The air bag module, seat belt fastened sensor and heat pad (if present) connectors are anchored to a connector bracket, anchored in turn to the seat structure. The bracket may be rotated forward by means of the anchorage clip to gain access to the

connectors .

View of connector carrier bracket

Wording on the outside of the squab warns of the presence of an air bag beneath the trim.

If the air bag module, cable and seat trim are replaced, the new parts come with registration plates which should be detached and stuck on the seat base so that they can be easily read.
