BodyTunnel switch panel - r r

Tunnel switch panel - r r

Operation 7040L28 · Cabin floor covering

Removal

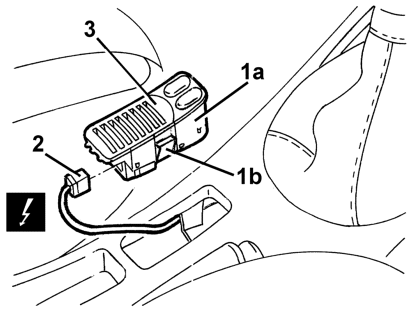

1 Remove the switch panel 1a from the retainers 1b.

2 Disconnect the electrical connections.

Component H35 Switches on tunnel 2

3 Recover the panel.

Refitting

Check that the switch panel is not damaged.

Connect the electrical connection

Fit the panel and engage the retainers.

Check that the switches are working.
