Flap assembly - r r

Operation 7040A31 · Passenger compartment trim

Removal

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange

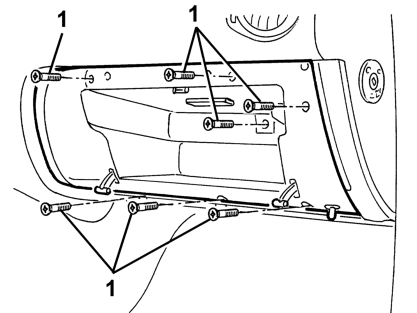

1 Undo the bolts fixing the compartment.

1 Move the compartment slightly.

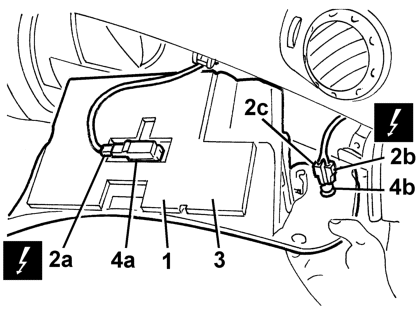

2 Disconnect the electrical connections (2a, 2b, 2c).

Component G30 Glove compartment light 2a

Component I15A Glove compartment light 2b

Component I15B Glove compartment light 2c

3 Recover the compartment.

4 If necessary, remove the courtesy light 4a and switch 4b from their seating.

Refitting

Check that the compartment is not damaged.

If removed, refit the switch and courtesy light.

Connect the electrical connection.

Position the compartment.

Tighten the compartment fixing bolts.

See Op. 7040A14 Flap of glove compartment trim element (one) - arrange
