Removing and installing engine

Make

Volkswagen

Model

Golf Mk5

Section

6-cylinder injection engine › Engine assy,cylinder block,crankcase › Removing and installing engine

Power unitRemoving and installing engine

Removing and installing engine Removing engine → Chapter. Securing engine to assembly stand → Chapter. Install engine → Chapter. Specified torques for assembly mountings → Chapter.

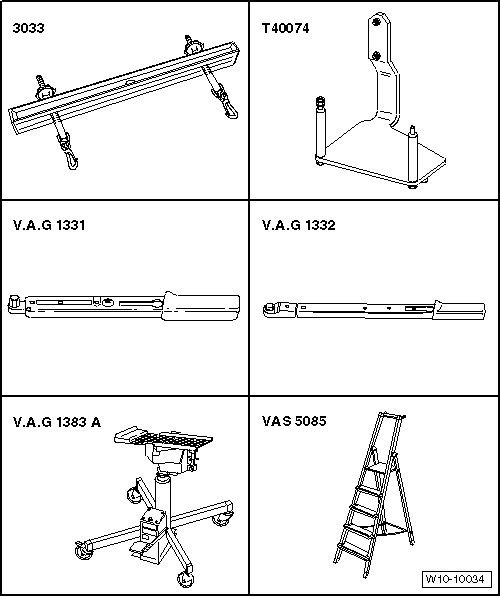

Special tools and workshop equipment required

t	Lifting tackle -3033-

t	Engine bracket -T40074-

t	Torque wrench -V.A.G 1331-

t	Torque wrench -V.A.G 1332-

t	Engine and gearbox jack -V.A.G 1383 A-

t	Stepladder -VAS 5085-

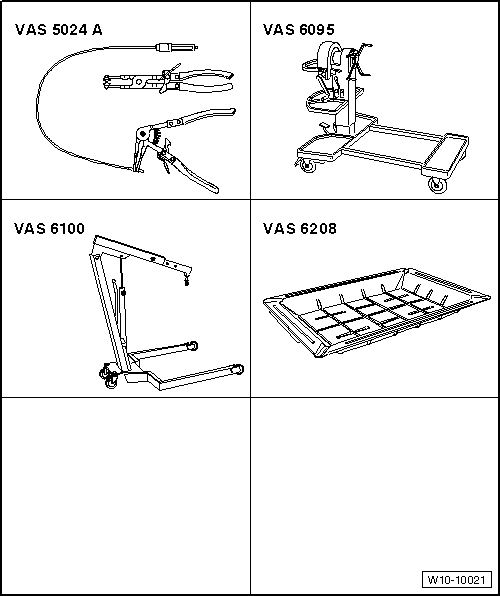

t	Spring-type clip pliers -VAS 5024 A-

t	Engine and gearbox support -VAS 6095- with engine bracket -3269-

t	Workshop hoist -VAS 6100-

t	Drip tray -V.A.G 1306- or drip tray -VAS 6208-

Not illustrated: t  Container for removed parts -V.A.G 1698- t  Engine bung set -VAS 6122- t  Cable ties t  High-temperature grease -G 052 133 A2- (vehicles with DSG®) t  Grease -G 000 1000- (vehicles with manual gearbox)
