MASTER CYLINDER ASSEMBLY
- Make
- Land Rover
- Model
- Range Rover Classic
- Section
- REPAIR › MASTER CYLINDER ASSEMBLY
70 - BRAKES - NON ABSMASTER CYLINDER ASSEMBLY · page 1 of 2
70
BRAKES
6
REPAIR
MASTER CYLINDER ASSEMBLY

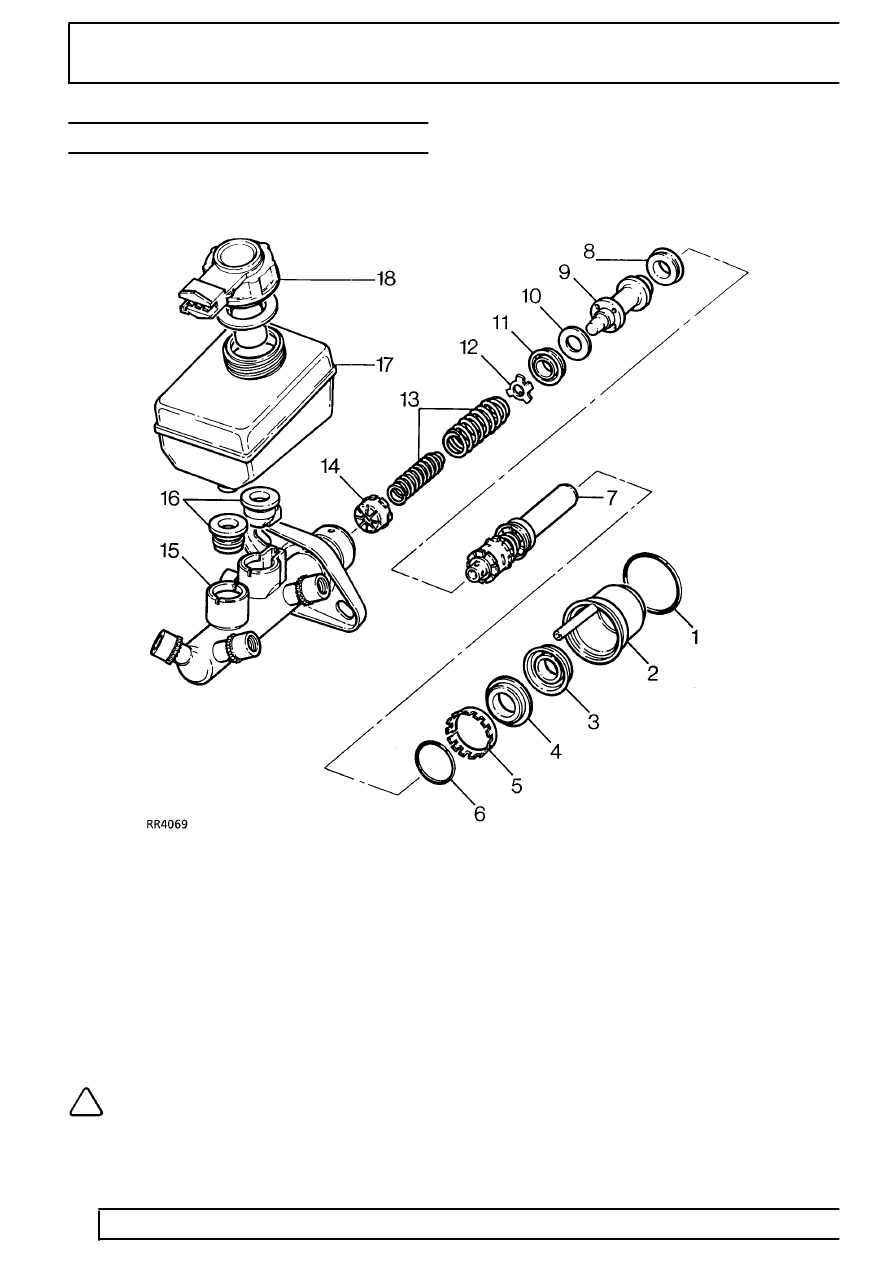

Key to master cylinder
1. Water ingress seal
2. Transfer housing
3. Vacuum seal
4. Guide ring
5. Retaining ring
6. ’O’ ring seal
7. Primary plunger assembly
8. ’L’ seal
9. Secondary plunger
10. Washer
11. Recuperating seal (primary
cup)
12. Seal retainer
13. Springs (2 off)
14. Swirl tube
15. Master cylinder body
16. Reservoir seals
17. Reservoir
18. Low fluid level switch and
cap
NOTE: Thoroughly check that no debris is lodged in fluid passageways and drillings. If debris is
found, carefully remove, re-clean cylinder and re-check.
