Transmission brake

Make

Land Rover

Model

Gearboxes LT230Q Transfer Box

Section

TRANSFER BOX ASSEMBLING › Transmission brake

OVERHAULTransmission brake

TRANSFER BOX

50

OVERHAUL

Transmission brake

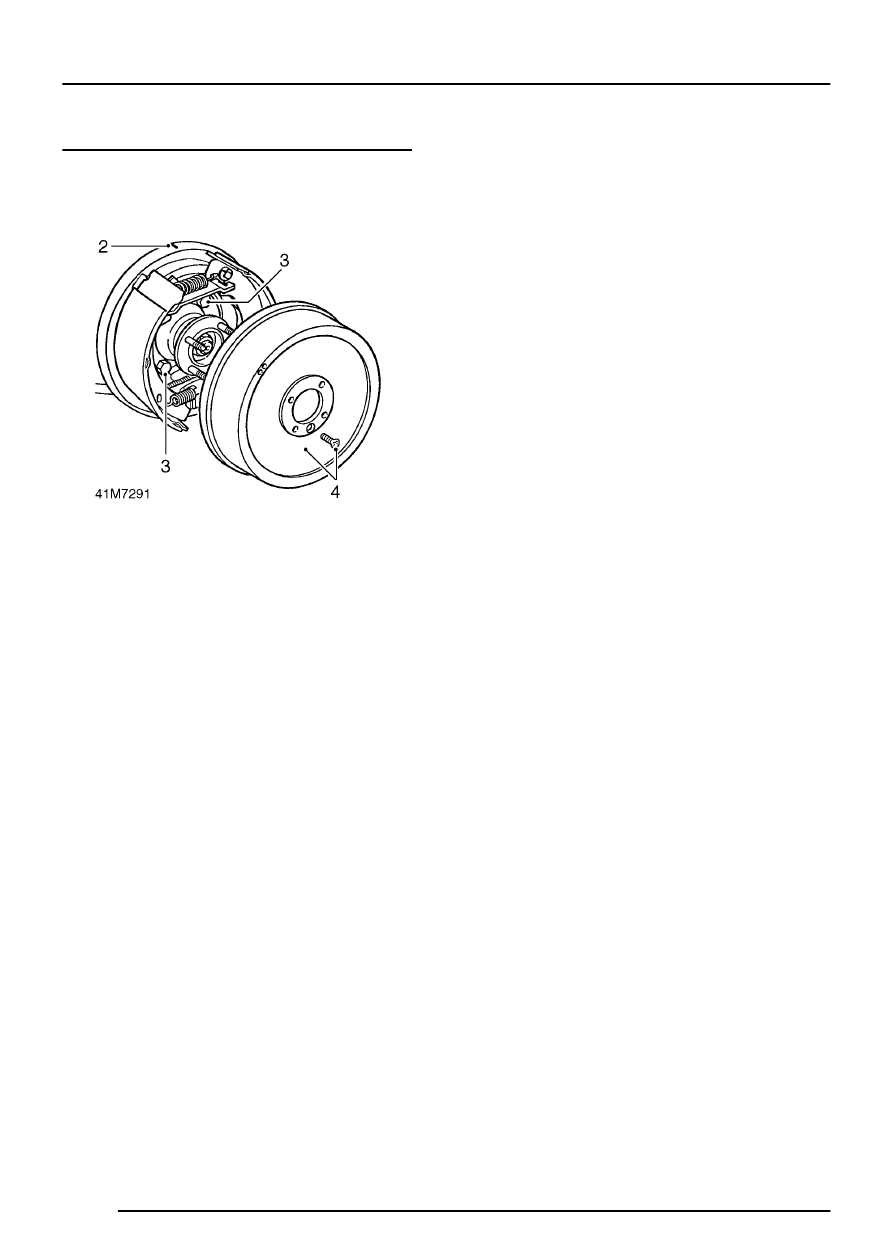

1. Apply Hylosil RTV 102 sealant to mating face

of rear output housing.

2. Position brake backplate on rear output

housing ensuring that alignment marks are
together.

3. Fit 4 bolts and tighten to 70 Nm (52 lbf.ft).
4. Fit transmission brake drum, fit countersunk

screw and tighten.

15 General
