REAR AXLE AND FINAL DRIVEDESCRIPTION · page 2 of 2
51
REAR AXLE AND FINAL DRIVE
2
DESCRIPTION AND OPERATION

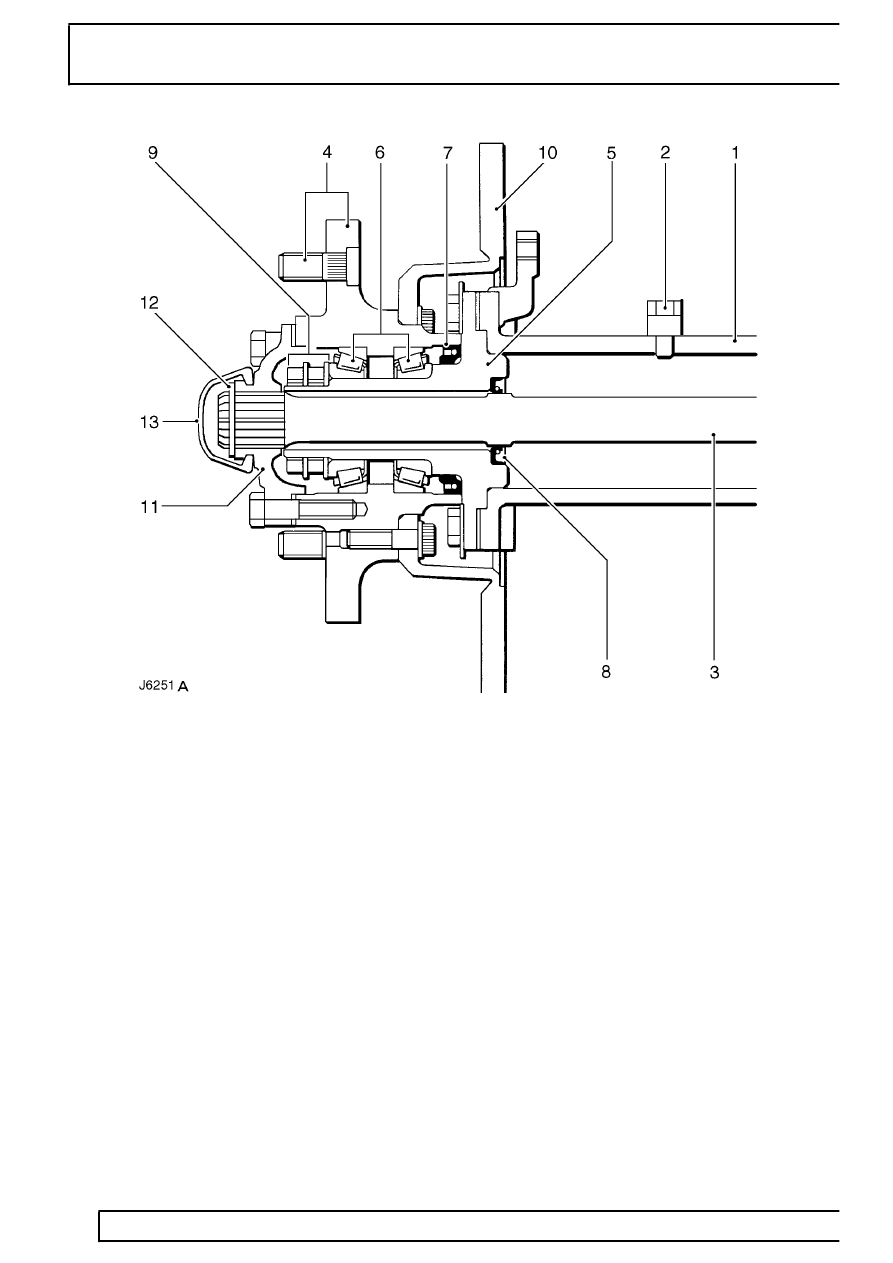

Rear axle hub - 110/130
1. Axle casing
2. Ventilation pipe
3. Axle shaft
4. Wheel studs and hub
5. Wheel bearing stub axle
6. Wheel bearings
7. Inner hub seal
8. Outer hub/axle shaft seal
9. Hub lock plate, thrust washer and nuts
10. Brake disc
11. Drive flange
12. Drive shaft circlip
13. Dust cap
