FUEL SYSTEM LAYOUT (page 3 of 5)
- Make
- Land Rover
- Model
- Defender 300Tdi Defender
FUEL SYSTEMFUEL SYSTEM LAYOUT · page 3 of 5
FUEL SYSTEM
3
DESCRIPTION AND OPERATION
90 FUEL SYSTEM
110 FUEL SYSTEM

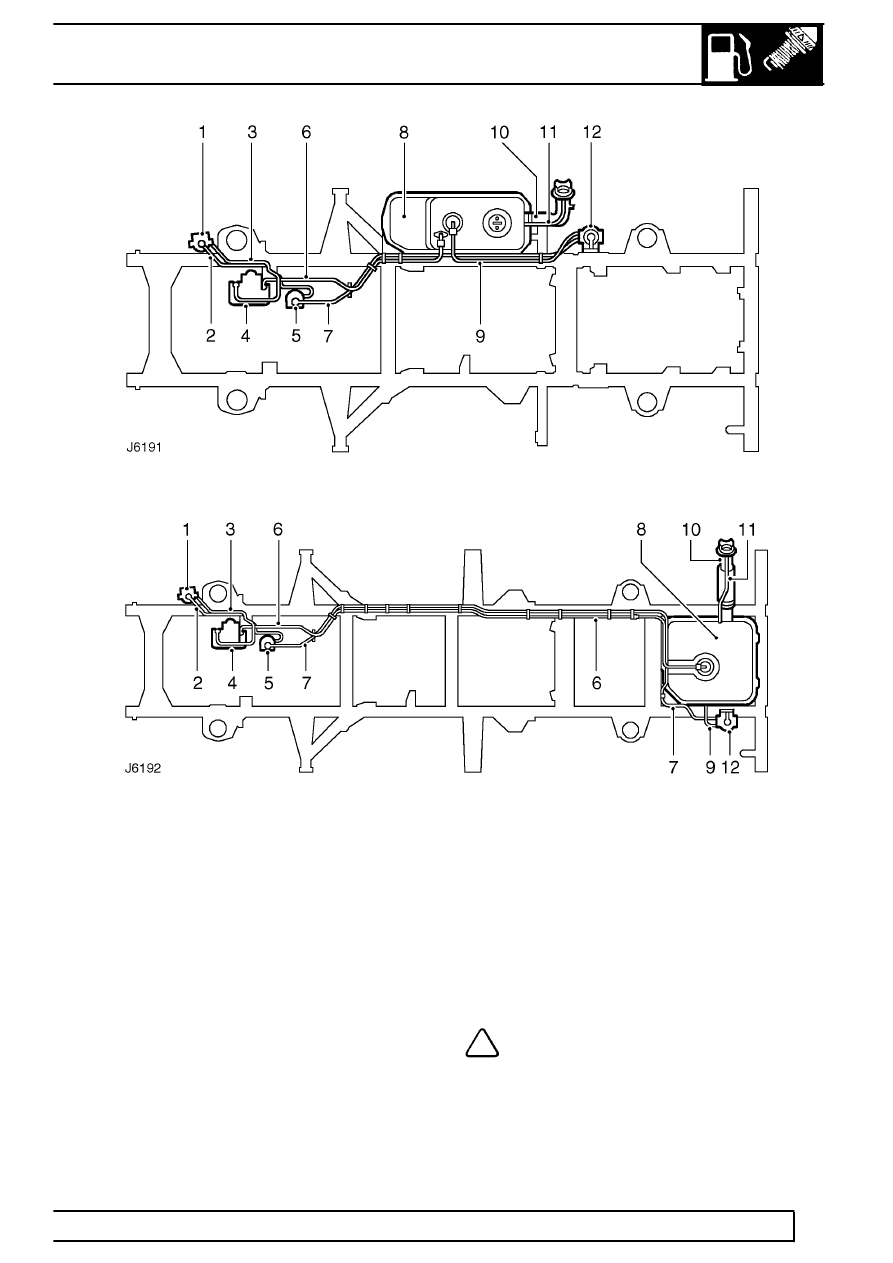

1. Fuel filter
2. Supply pipe, lift pump to filter
3. Supply pipe, fuel filter to injection pump
4. Fuel injection pump
5. Fuel lift pump
6. Spill return pipe, injection pump to tank
7. Supply pipe, sedimentor to fuel pump
8. Fuel tank
9. Supply pipe, fuel tank to sedimentor
10. Fuel filler pipe
11. Breather pipe
12. Sedimentor, if fitted
NOTE: If a sedimentor is not fitted, the fuel
supply pipe from the tank will connect
directly to the fuel lift pump.
