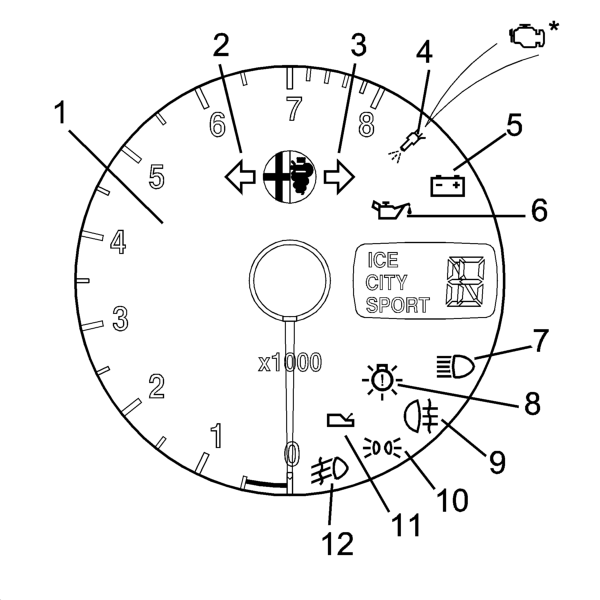

REV COUNTER (Q-system only)

• 1, Electronic rev counter
• 2, Left direction indicators warning light
• 3, Right direction indicators warning light
• 4, Fuel injection failure warning light (* EURO 3 versions)
• 5, Recharging warning light
• 6, Low oil pressure warning light
• 7, Main beam headlamps warning light
• 8, Lighting failure warning light
• 9, Rear fog lamp warning light
• 10, Side light/dipped beam warning light
• 11, Automatic transmission failure warning light
• 12, Fog lamp warning light
• 13, Gear display

The module includes;

electronic rev counter

warning lights

gear display

The engine management unit (specific to each engine type) produces an rpm signal.

The gauge display is produced by an electronic circuit inside the module.
