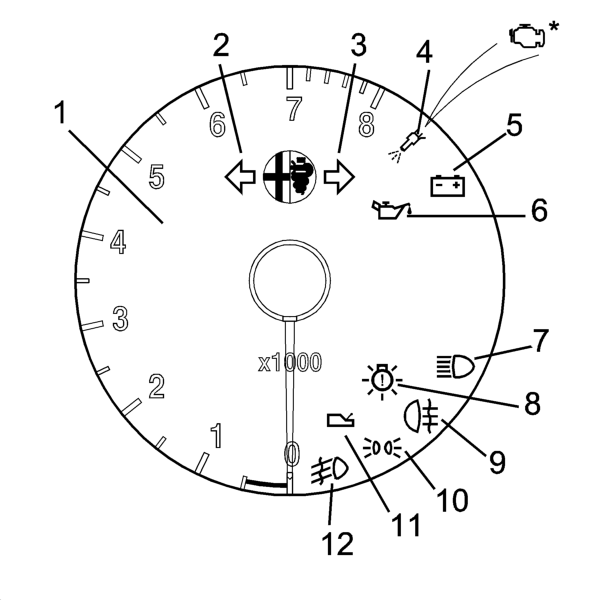

REV COUNTER

• 1, Electronic rev counter
• 2, Left direction indicators warning light
• 3, Right direction indicators warning light
• 4, Injection system failure warning light (* for EURO 3 versions)
• 5, Recharging warning light
• 6, Low oil pressure warning light
• 7, Main beam headlamps warning light
• 8, Lighting failure warning light
• 9, Rear fog lamp warning light
• 10, Side light/dipped beam warning light
• 11, Turn signal warning light for trailer
• 12, Fog lamp warning light

The module includes:

electronic rev counter

warning lights

The engine management unit (specific to each engine type) produces an rpm signal.

The gauge display is produced by an electronic circuit inside the module.
