Rear speaker - r r (Saloon)

Operation 5570T98 · Saloon · Car radio and car telephone

Removal

Open the boot lid.

1 Undo the fastenings of the upper luggage compartment trim.

2 Lower the trim.

3 Disconnect the loudspeaker's electrical connection.

Component P30 Rear left loudspeaker (wiring) 3

Component P31 Rear right loudspeaker (wiring) 3

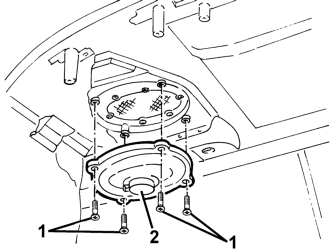

1 Undo the rear speaker bolts

2 Remove the speaker.

Refitting

Check that the rear speaker is not damaged.

Position the speaker and secure it using the bolts.

Connect the speaker electrical connection.

Do up the rear retaining studs on the luggage compartment top trim.

Check to ensure the radio is working properly.
