Radio/phone set - r r

Operation 5570T86 · Car radio and car telephone

Removal

Use the radio removal tools supplied with the car.

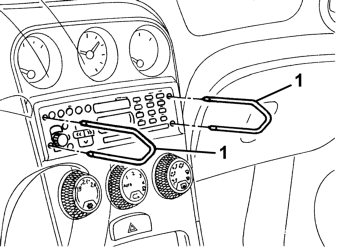

1 Fit both tools into the slots on the front of the radio and push in until the mechanism holding the radio in place clicks open.

1 Pull out the radio using the tools.

2 Take out the tools.

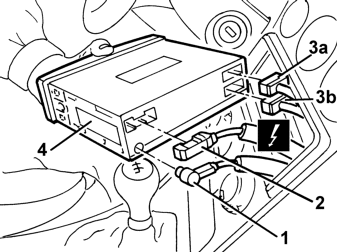

1 Disconnect the aerial coaxial connection.

2 Disconnect the microphone lead connection.

3 Disconnect radio electrical connections (3a, 3b).

Component P20A Car radio 3a

Component P20B Car radio 3b

4 Take out the radio

Refitting

Connect the electrical connections and the radio aerial lead.

Check the radio and speakers are working properly.

Fit the radio into into its compartment, taking care not to compress the electrical wires.

Push the radio fully home until it locks in place.
