Mobile phone hands-free system microphone - r r

Operation 5570T14 · Car radio and car telephone

Removal

See Op. 7065C34 L/h or r/h sun blind (one) - r+r (left and right sides)

See Op. 7040E40 Modular front courtesy light - r r

See Op. 5570T86 Radio/phone set - r r

See Op. 7040H30 Front pillar trim - r r (left and right sides)

See Op. 7065C30 Interior l/h or r/h grab handle (one) - r+r (passenger side)

See Op. 7040A45 Facia rh side cover - r r

See Op. 7040G24 Switch for facia compartment light - r+r

See Op. 7040G20 Facia compartment light bulb holder - r+r

See Op. 7040A31 Flap assembly - r r

See Op. 7065C42 Ashtray (one) r+r

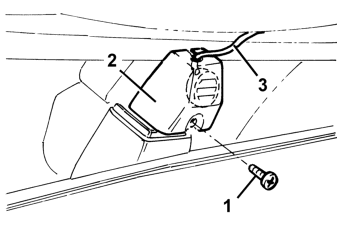

1 Unscrew the bolt.

2 Lower the microphone mount.

3 Release the lead with microphone.

Lower the front edge of the roof lining.

Release the microphone lead from the bands under the front lining, on the right pillar and beneath the glove compartment.

Attach a sensor lead to the microphone lead connector in the radio compartment.

Recover the lead from the right pillar by pulling through the sensor lead to make it easier to refit the lead.

Refitting

Check that the microphone and lead are undamaged.

Connect the electrical connection to the sensor lead fitted previously.

Replace the lead and secure with bands.

Position the microphone on the mount.

Fit the mounting and tighten the bolt.

See Op. 7065C42 Ashtray (one) r+r

See Op. 7040A31 Flap assembly - r r

See Op. 7040G20 Facia compartment light bulb holder - r+r

See Op. 7040G24 Switch for facia compartment light - r+r

See Op. 7040A45 Facia rh side cover - r r

See Op. 7065C30 Interior l/h or r/h grab handle (one) - r+r (passenger side)

See Op. 7040H30 Front pillar trim - r r (left and right sides)

See Op. 5570T86 Radio/phone set - r r

See Op. 7040E40 Modular front courtesy light - r r

See Op. 7065C34 L/h or r/h sun blind (one) - r+r (left and right sides)
