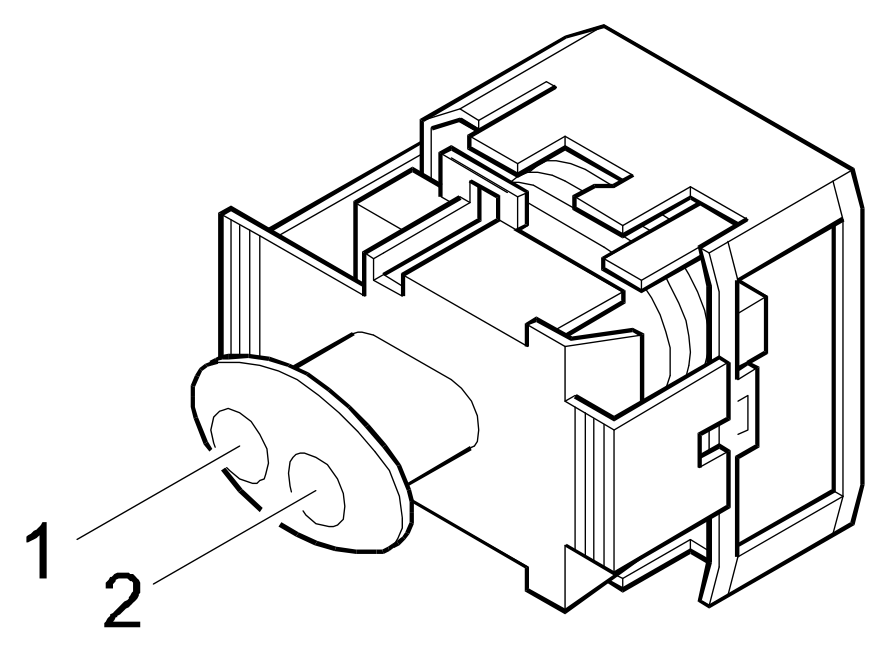

P45 Left tweeter speaker

Connector P45 – front left door harness (white) – Euro3

Pin	mm²	Colour		To
2	1.5	BN	white/black	P35 pin 2 D30 pin 24
3	1.5	SG	pink/yellow	D30 pin 7 P35 pin 1

Connector P45 – front left door harness (yellow)

Pin	mm²	Colour		To
1	1.5	RG	red/yellow	D30 pin 7 P35 pin 1
2	1.5	BN	white/black	P35 pin 2 D30 pin 24

Connector P45 – front left door harness (yellow) – RH drive adaptation

Pin	mm²	Colour		To
1	1.5	VN	green/black	P35A pin 2 D30 pin 7
2	1.5	MB	brown/white	D30 pin 24 P35A pin 1

Wiring diagrams

• E3510
• E3520
