G30 Glove compartment light
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Interior lighting › G30 Glove compartment light
Connectors and pin-outsG30 Glove compartment light
G30 Glove compartment light

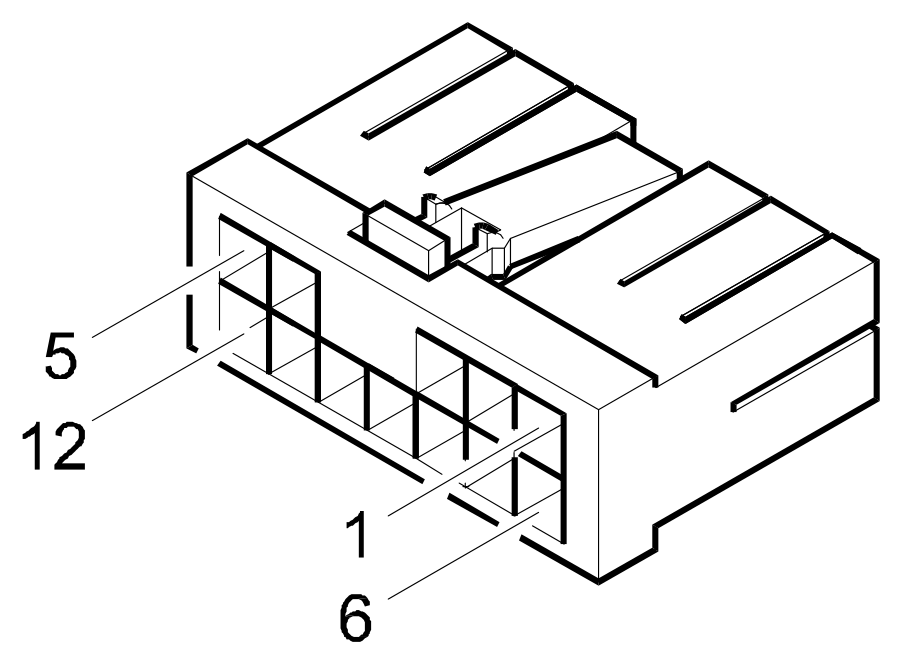

Connector G30 – dashboard harness (black) – up to 2/99
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | HB | grey/white | I15A pin @ | |
| 2 | AR | light blue/red | B1I pin 8 D20 pin 19 D20 pin 46 D21A pin 1 G30 pin 2 J60 pin 86 B10 pin - D20 pin 5 H20A pin 2 |
Connector G30 – dashboard harness (black) – from 2/99
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | HB | grey/white | I15A pin @ | |
| 2 | AR | light blue/red | B1I pin 8 D20 pin 19 D20 pin 46 D21A pin 1 G30 pin 2 J60 pin 86 B98B pin 12 D20 pin 5 H20A pin 2 |
Wiring diagrams
