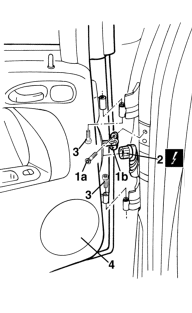

Rear side door

Operation 7210E38 · External parts

Removal

1 Undo the bolt 1a of the door check strap 1b and close the door again to push the check strap back in.

2 Disconnect the electrical connections.

Component D35 Rear/right door connection left 2

Component D36 Rear/right door connection door 2

3 Undo the hinge bolts.

4 Lift the door and remove it.

Refitting

Refit the door on the hinges.

Tighten the hinge bolts.

Connect the electrical connection.

Check the various appliances on the door are working properly.

Make the check strap come out and tighten the bolts.

See Op. 7010A14 Rear side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
