Front side door

Operation 7210E36 · External parts

Removal

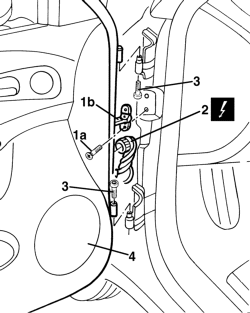

1 Undo the bolt 1a which secures the door check strap 1b to the door pillar and close the door to push the check strap back in.

2 Disconnect the electrical connections.

Component D30 Rear / front door connection left 2

Component D31 Right front door rear coupling/. 2

3 Undo the hinge bolts.

4 Lift the door and remove it.

Refitting

Refit the door on the hinges.

Tighten the hinge bolts.

Connect the electrical connection

Check the various appliances on the door are working properly.

Make the check strap come out and tighten the bolts.

See Op. 7005A14 Front side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
