BodyView of assembly

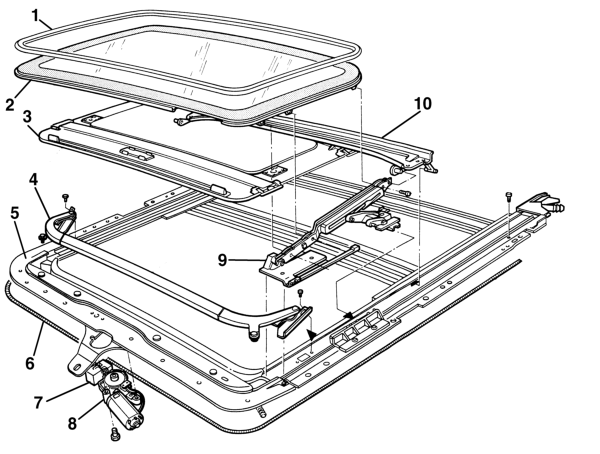

VIEW OF ASSEMBLY
- 1, Seal
- 2, Transparent panel
- 3, Blind
- 4, Spoiler
- 5, Frame
- 6, Drive cable
- 7, Control unit
- 8, Motor
- 9, Pantograph
- 10, Drainage channel
The diagram shows the entire subassembly
