- Passenger compartment rear side doors › View of assembly
BodyView of assembly

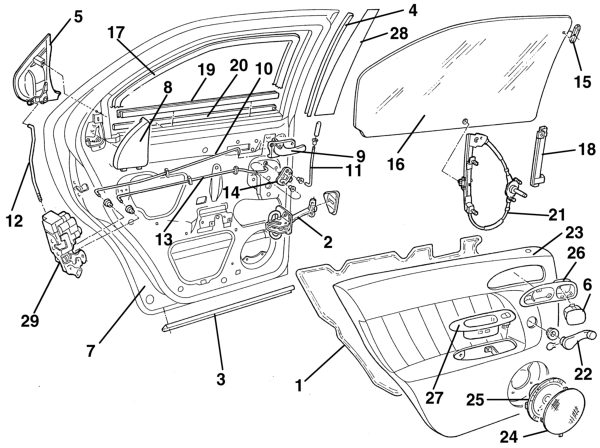

VIEW OF ASSEMBLY
- 1, Water guard protection
- 2, Door opening limiter
- 3, Lower seal
- 4, Weather strip
- 5, Exterior handle
- 6, Ashtray
- 7, Door frame
- 8, Panel
- 9, Interior handle
- 10, Interior opening link
- 11, Safety device
- 12, Link between exterior handle and lock
- 13, Safety device link
- 14, Control mechanism
- 15, Window fastening element
- 16, Window glass
- 17, Window glass channel
- 18, Window glass guide
- 19, Exterior glass scraper trim
- 20, Interior glass scraper trim
- 21, Window opening mechanism
- 22 Window handle
- 23, Interior panel
- 24, Speaker grille
- 25, Speaker
- 26, Interior panel
- 27, Interior grab handle
- 28, Pillar outer trim
- 29, Lock
The figure shows the entire subassembly
