View of assembly
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Passenger compartment front side door › View of assembly
BodyView of assembly

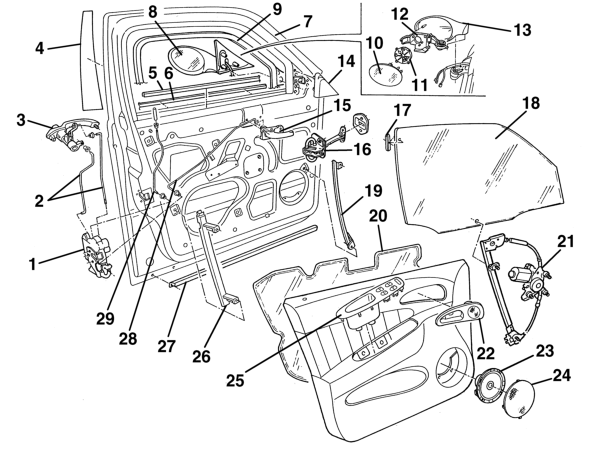

VIEW OF ASSEMBLY
- 1, Lock
- 2, Links between exterior handle and lock
- 3, Outer handle
- 4, Pillar outer cover
- 5, Inner glass scraper trim
- 6, Outer glass scraper trim
- 7, Door frame
- 8, Rear view mirror
- 9, Window channel
- 10, Reflector
- 11, Motor
- 12, Bracket
- 13, Cover
- 14, Corner cover
- 15, Inner handle
- 16, Door opening limiter
- 17, Window fastening element
- 18, Window glass
- 19, Front guide
- 20, Water guard protection
- 21, Window opening mechanism
- 22, Panel with tweeter
- 23, Speaker
- 24, Speaker grille
- 25, Interior grab handle with electric window controls
- 26, Rear guide
- 27, Lower trim
- 28, Interior opening handle
- 29, Safety link
The diagram shows the entire subassembly
