View of assembly
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Mouldings on protections › View of assembly
BodyView of assembly

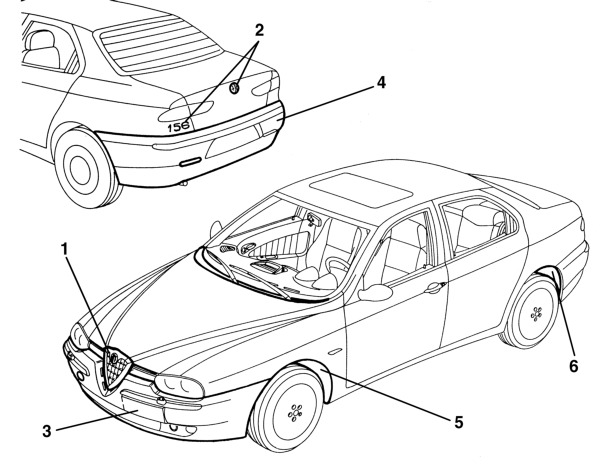

VIEW OF ASSEMBLY
- 1, Front finishing trim
- 2, Rear finishing trim
- 3, Front bumper
- 4, Rear bumper
- 5, Front supplementary wheel arch
- 6, Rear supplementary wheel arch
The diagram shows the entire subassembly
