- Compartment covers lids › View of assembly
BodyView of assembly

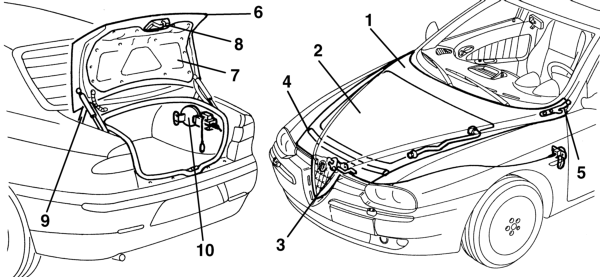

VIEW OF ASSEMBLY
- 1, Bonnet lid
- 2, Trim
- 3, Lock unit
- 4, Weather strip
- 5, Hinge
- 6, Boot lid
- 7, Trim
- 8, Lock
- 9, Hinge
- 10, Fuel filler flap
The figure shows the entire subassembly.
