Heating - passenger compartment components

Make
Volkswagen
Model
Polo Mk4
Section
Heating, air conditioning › Heating › Heating - passenger compartment components
Heating, ventilation, air conditioningHeating - passenger compartment components
Heating - passenger compartment components
  WARNING
Before working on the heater and air conditioning system, it is necessary to disconnect the battery earth wire Battery -A- → Electrical equipment; Rep. gr.27.
  Note
t  Check whether the vehicle has a coded radio. If so, request the anti-theft code before disconnecting the Battery -A- earth wire.
t  Upon reconnecting the Battery -A-, check the vehicle equipment (radio, clock, power locks and windows, etc.) according to the Workshop Manual and/or instructions for use.

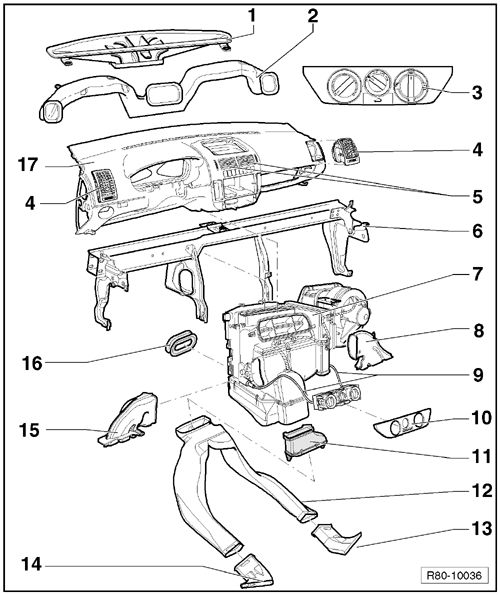

1 - Upper air duct
q   Installed on the cross support of instrument panel.
q   Remove and install → Chapter.
2 - Air duct for baffles
q   Installed on the instrument panel → General body repairs, interior; Rep. gr.70.
3 - Ventilation adjustment mechanism
q   Remove and install → Chapter.
4 - Air baffles (sides)
q   Remove and install → Chapter.
5 - Air baffles (central)
q   Remove and install → Chapter.
6 - Transverse support on instrument panel
q   Remove and install → Body - Internal assembly works; Rep. gr.70.
7 - Plenum chamber (heating system)
q   Remove and install → Chapter.
8 - Front right feet air duct
q   Remove and install → Chapter.
9 - Command cable
q   For the ventilation adjustment mechanism.
q   For the heating adjustment mechanism.
10 - Ventilation adjustment mechanism frame
11 - Coupling for the rear air duct
12 - Rear air duct
q   Remove and install → Chapter.
13 - Rear right feet air duct
q   Remove and install → Chapter.
14 - Rear left feet air duct
q   Remove and install → Chapter.
15 - Front left feet air duct
q   Remove and install → Chapter.
16 - Heat exchanger/engine compartment partition panel sealing
q   Replace if damaged
q   Observe the installation position → Chapter.
17 - dash panel
q   Remove and install → Body - Internal assembly works; Rep. gr.70.
