1.9/96 TDI Engine, Mechanics: Technical Data

Make

Skoda

Model

Fabia Mk1

Section

1.9/96 TDI Engine, Mechanics › Technical Data › Technical data

Drive unitTechnical data

Technical data

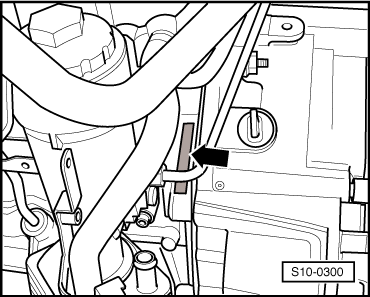

Engine number The engine number (“engine identification character” and “serial number”) is located in the front at the engine/gearbox joint -arrow-. In addition, a sticker with the “engine identification characters” and “serial number” is affixed to the timing belt guard. The engine identification characters are also indicated on the vehicle data sticker.

Engine characteristics

Engine identification characters		ASZ	BLT
Manufactured		06.03 ? 10.05	10.05 ? 04.07
Exhaust limit values conforming to		EU-3	EU-4
Displacement	l	1,896	1,896
Power output	kW at rpm	96/4000	96/4000
Torque	Nm at rpm	310/1900	310/1900
Bore	Ø mm	79,5	79,5
Stroke	mm	95,5	95,5
Cylinder / valves per cylinder		4/2	4/2
Compression ratio		19,0 : 1	19,0 : 1
Firing order		1-3-4-2	1-3-4-2
Catalytic converter		yes	yes
Exhaust gas recirculation		yes	yes
Cooling of exhaust gas recirculation		no	yes
Turbocharging		yes	yes
Charge air cooler		yes	yes
Diesel particle filter		no	no
Balancing shaft		no	no
