Power transmissionDiagram of force transmission

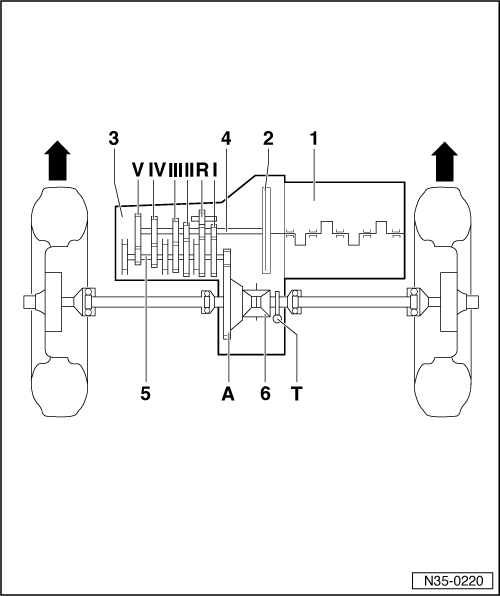

Diagram of force transmission

Denomination

The -arrows- indicate the direction of movement

1 -

Motor

2 -

Clutch

3 -	Manual gearbox

4 -	Primary shaft

5 -	Secondary shaft /drive pinion shaft

6 -	Differential

Demultiplications

The -arrows- indicate the direction of movement

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

R -	Reverse gear

A -	Half-shaft control

T -	Speedometer control
